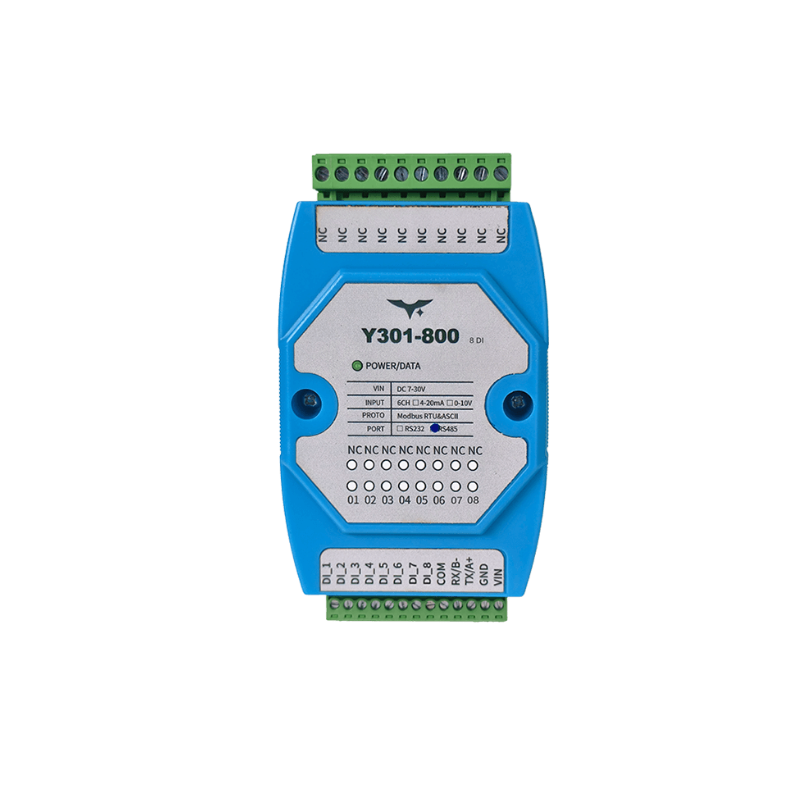

16-Channel Isolated Digital Input Module Y301-600/800/G00 Series | Industrial-Grade | Dry Contact & NPN Support | Modbus RTU
Get Quote Now | Free Technical Solution Consultation
Common Pain Points
Traditional digital input modules often suffer from limited channel count restricting multi-signal acquisition, poor anti-interference causing false triggers in noisy industrial environments, short communication distance limiting remote deployment, insufficient isolation leading to equipment damage from surges or ground loops, narrow power range causing instability, complex wiring and addressing for expansion, and compatibility issues with modern IoT/PLC systems — severely impacting reliability, scalability, and efficiency in industrial automation and monitoring projects.
Solution & Core Features
1.High-Density 16-Channel Input — 16 isolated digital inputs supporting both dry contact (passive) and NPN-type (active) signals, compatible with proximity switches, infrared sensors, push buttons, wall switches, etc.
2.Strong Industrial Isolation & Protection — Photoelectric + DC-DC isolation (1500V surge withstand), IEC-compliant ESD/surge protection, overcurrent/overvoltage/reverse polarity safeguards for superior noise immunity and equipment safety.
3.Flexible Long-Distance Communication — Dual interfaces: RS232 (≤15m) or isolated RS485 (up to 1200m), standard Modbus RTU/ASCII protocol, supports multi-module daisy-chain cascading with unique addressing for easy network expansion.
4.Wide Voltage & Extreme Environment Adaptability — DC 7-30V wide input (compatible with 9V/12V/24V sources), -40°C to +85°C full industrial temperature range, 35mm DIN rail mounting for harsh field deployment.
5.Seamless Integration & Reliability — Plug-and-play with mainstream PLCs, SCADA, and IoT gateways; compact design (102.5×70×35mm), low power, LED indicators for power and channel status.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Series | Y301-600 / Y301-800 / Y301-G00 |
| Digital Inputs | 16 channels (dry contact & NPN active) |
| Input Type | Dry contact (passive) / NPN (active) |
| Isolation | Photoelectric + DC-DC (1500V surge withstand) |
| Communication Interfaces | RS232 (DB9 female) / Isolated RS485 |
| Protocol | Modbus RTU / ASCII |
| Baud Rate | 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Default Format | 9600, n, 8, 1 |
| Power Supply | DC 7-30V |
| Power Consumption | Low power design |
| Operating Temperature | -40°C ~ +85°C |
| Relative Humidity | 0-95% RH (non-condensing) |
| Dimensions | 102.5 × 70 × 35 mm |
| Mounting | 35mm DIN rail |
| Weight | Approx. 60g |
| Origin | Mainland China |
Application Scenarios
Widely used in industrial automation (machine status monitoring, limit switch detection), smart manufacturing (production line signal acquisition), building automation (door/window sensors, access control), smart agriculture (irrigation valve status), water management (pump/flow switch monitoring), energy & power (substation switchgear status), smart city (traffic light/barrier detection), parking systems, exhibition hall lighting control, and any industrial IoT or process control scenario requiring reliable, high-density, long-distance digital input collection via Modbus RTU protocol.
