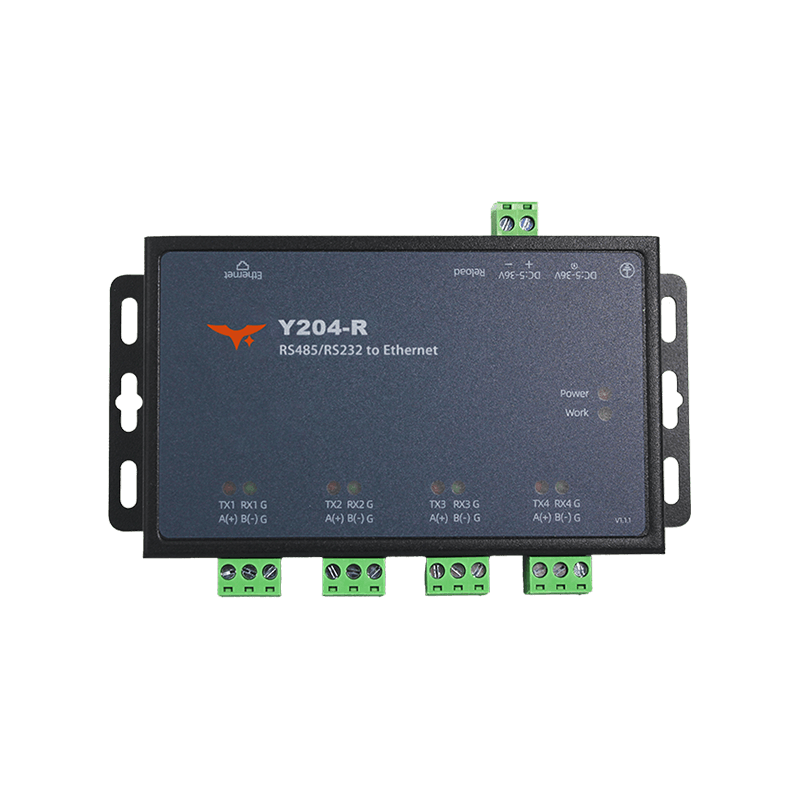

Y204-R 4 Ports Serial to Ethernet Converter

$63.99 $104.23

Free Delivery &

Ships within 48 Hours

30-Day Money-Back Guarantee

1-Year Warranty

Expert Technical Support

SPECIFICATIONS

Brand Name: NoEnName_Null

Condition: New

High-concerned chemical: None

Origin: Mainland China

Type: Logic ICs

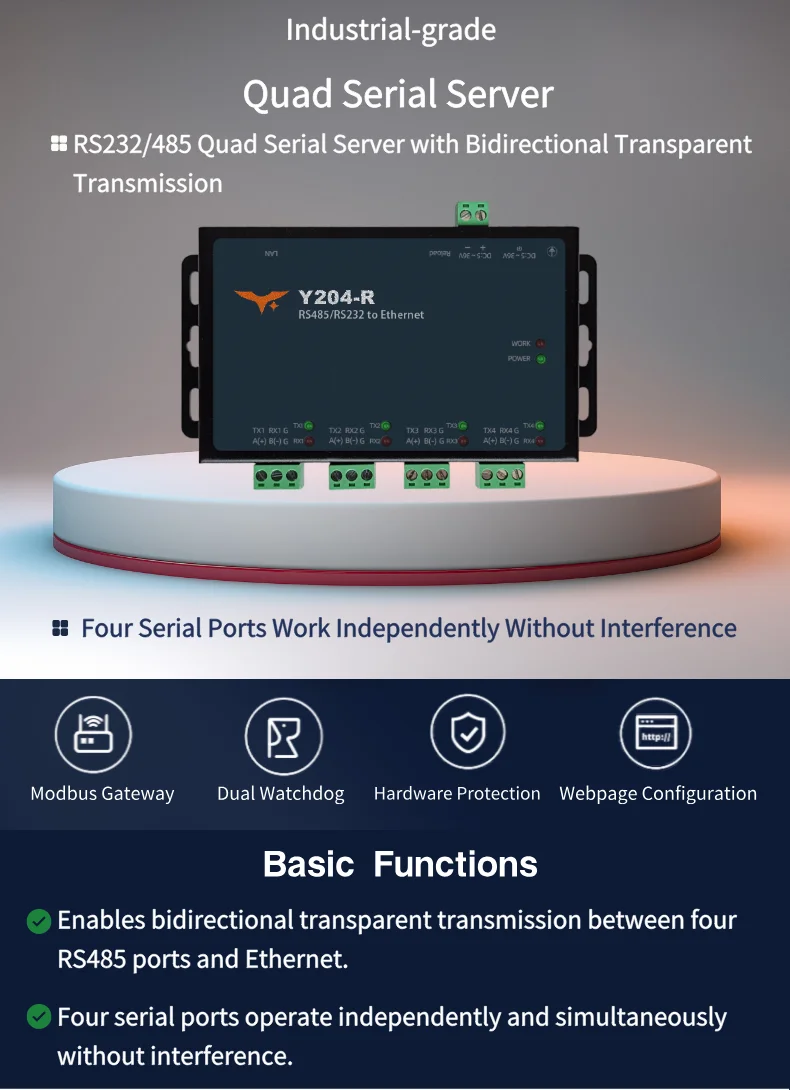

Y204-R Industrial Quad-Serial Port Server

✅Core Functions & Advantages

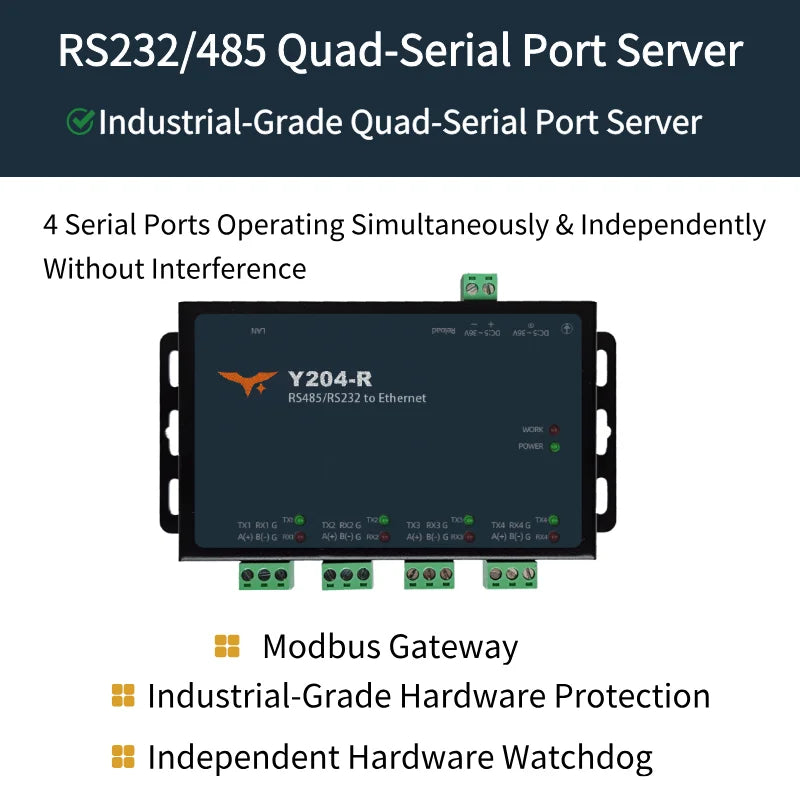

▲4 Independent Serial Ports: 4x RS232/485 ports operating simultaneously without interference, supporting 600-460800bps baud rate for multi-device parallel communication.

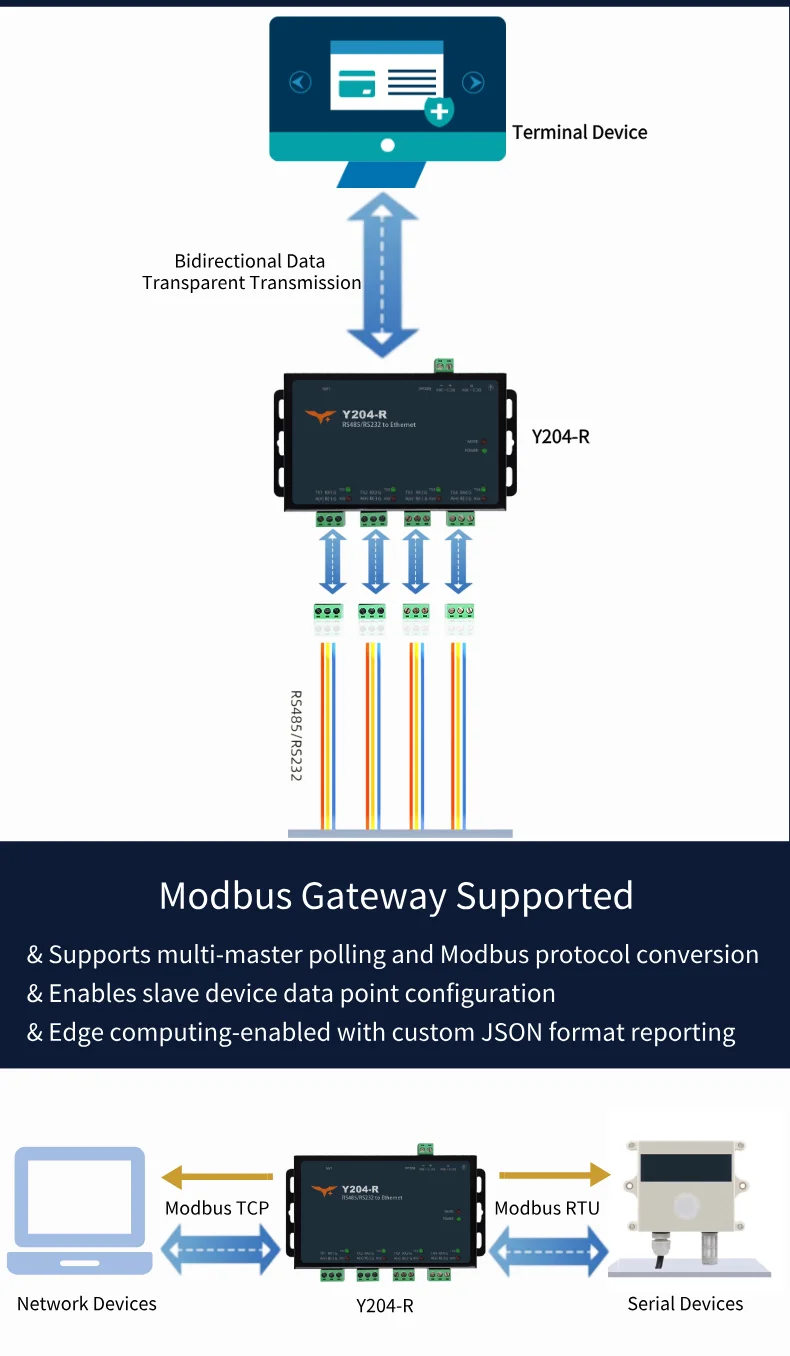

▲Modbus Gateway Bidirectional Conversion: Supports Modbus RTU/TCP protocol conversion, multi-master polling, and slave data point configuration, compatible with industrial automation systems.

▲Industrial-Grade Reliability:

Dual Watchdog: Hardware + software watchdog for automatic restart on anomalies, ensuring IoT network stability.

▲Wide Temp & Voltage: -40°C~85°C operating temperature, 5-36V wide voltage input, suitable for harsh industrial environments.

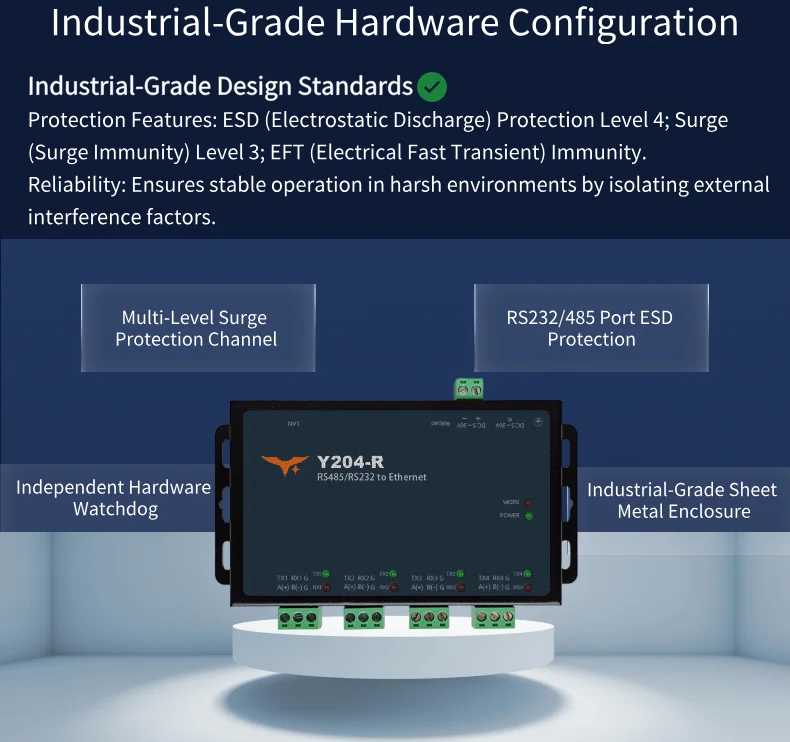

▲Multi-Protection: ESD Level 4, Surge Level 3, reverse power protection, and anti-EMI.

▲Multi-Protocol & Edge Computing: TCP/UDP/HTTP support, transparent transmission + custom JSON data reporting for edge computing.

✅Technical Specifications

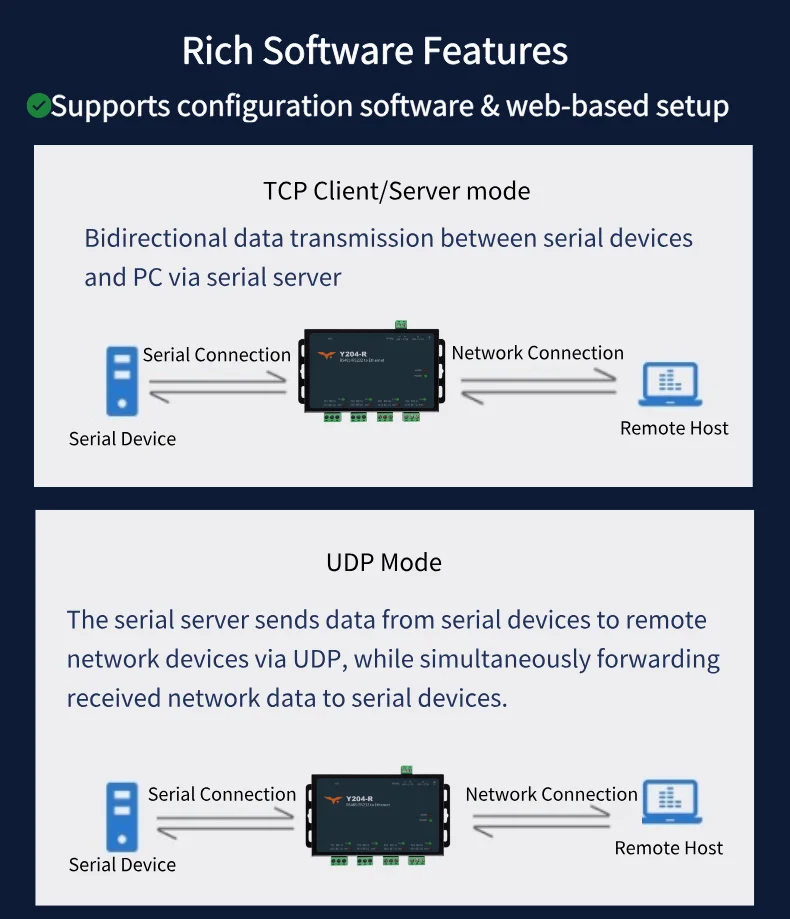

▲Efficient Management: supports TCP Client/Server, UDP, HTTP Client (GET/POST).

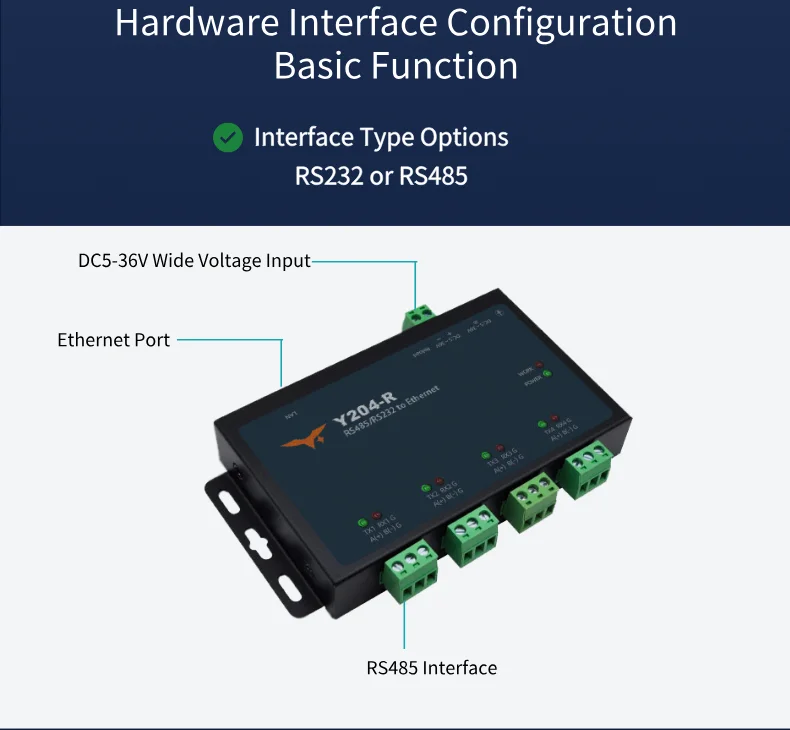

▲Compact Design: 150×79×32mm metal case, DIN rail mounting, space-saving.

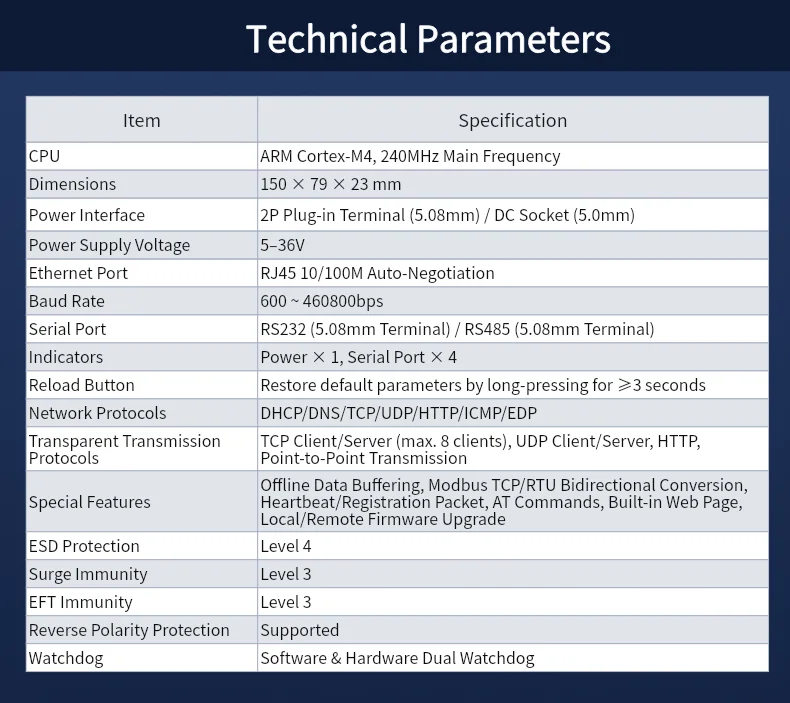

▲Key Parameters: ARM Cortex-M4 240MHz CPU, 4x RS485 (RS232 optional), 10/100M Ethernet port.
