SPECIFICATIONS

Baud Rate: 600~460800bps (RS232/RS485 independent)

Condition: New

High-concerned chemical: None

Network Interface: 10/100M adaptive Ethernet (RJ45)

Origin: Mainland China

Power Supply: c(overvoltage/overcurrent protected)

Processor: ARM Cortex-M4, 240MHz

Protection: ESD Level 4, Surge Level 3

Supply Voltage: DC 5-36V

Quality & Safety Commitment

✅ Issues with use? Contact us first

✅ Platform message for direct support

✅ One-on-one technical guidance

✅ Remote assistance for quick resolution

Thank you for your understanding & support!

✅ Core Advantages：

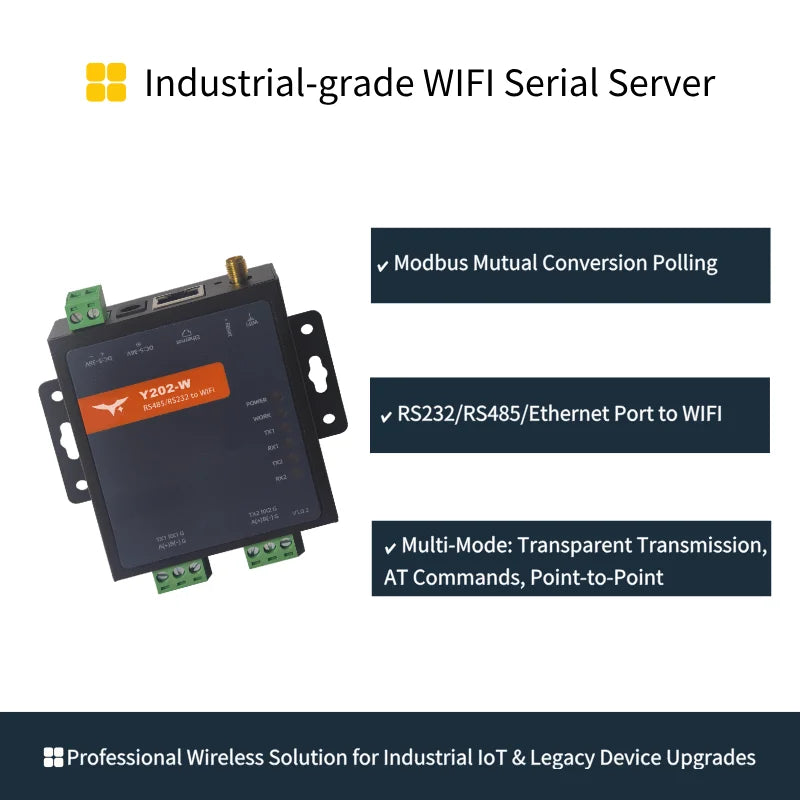

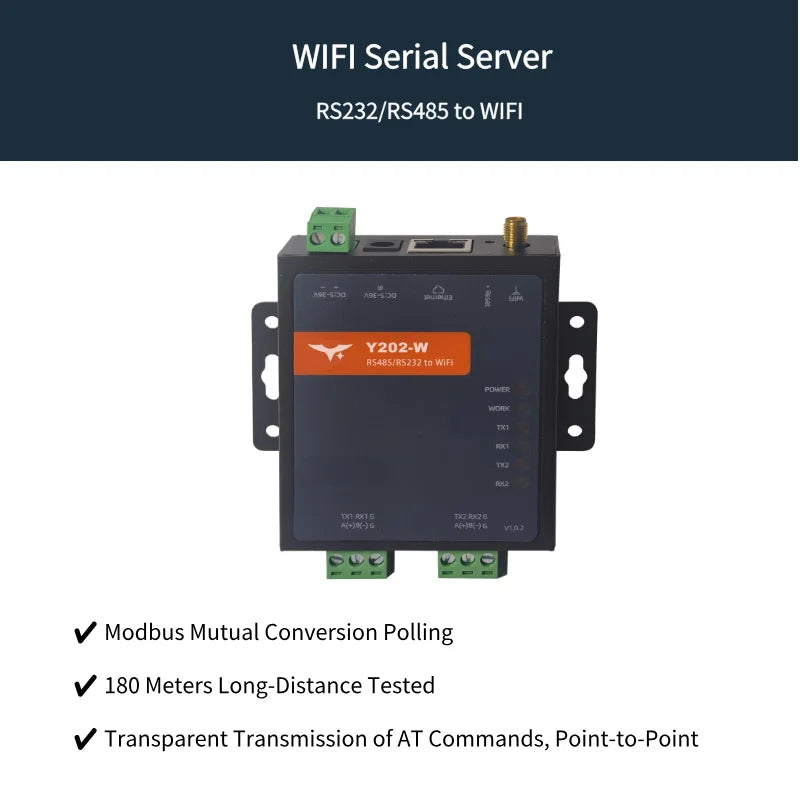

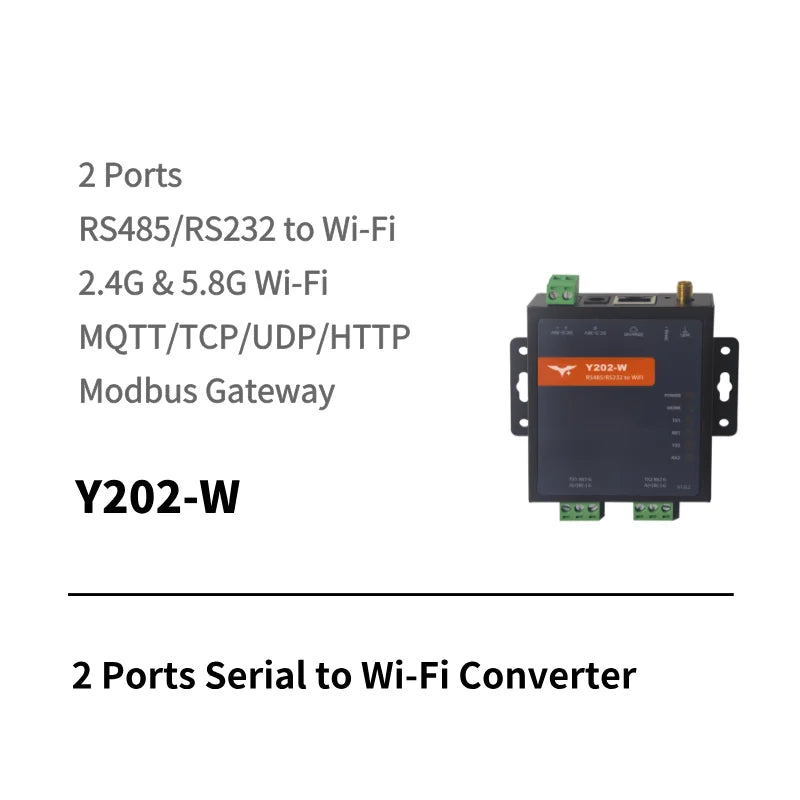

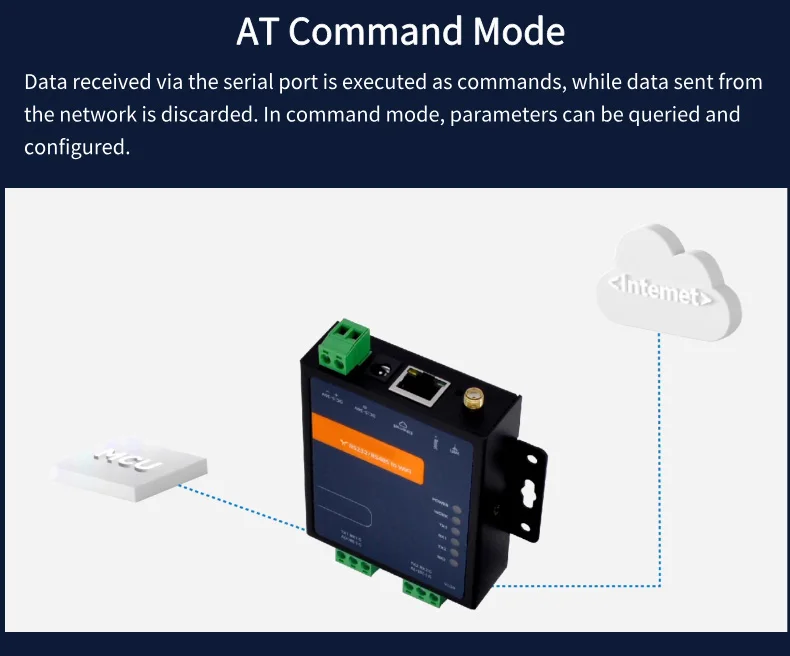

▲Bidirectional Data Transmission: Seamless RS232/RS485 to WiFi conversion, supporting transparent data transfer and AT command configuration.

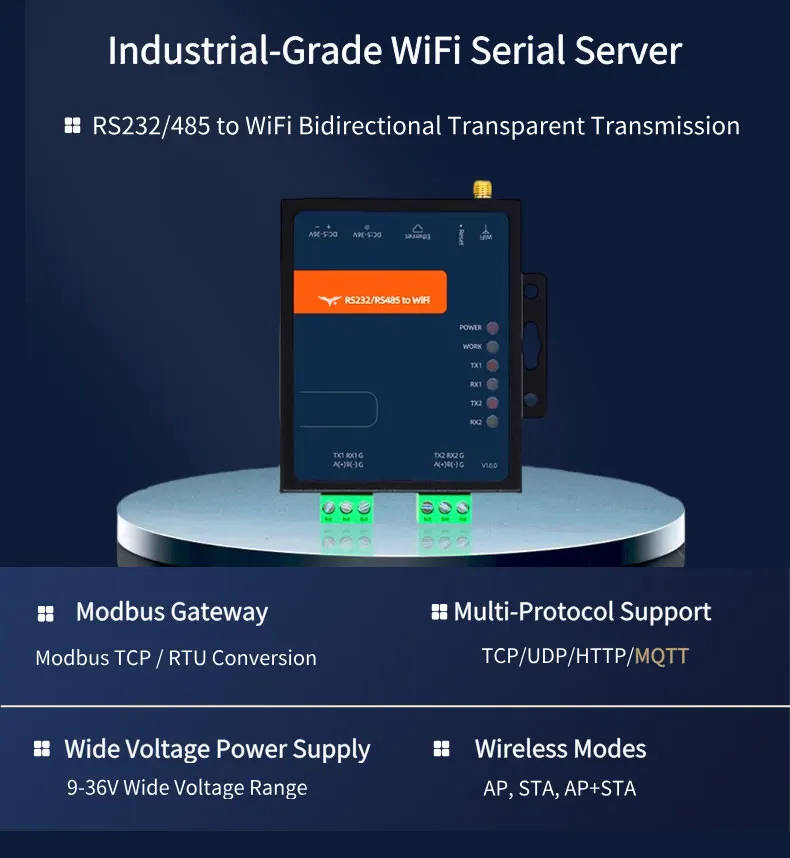

▲Modbus Protocol Expert: IntegratesModbus TCP/RTU conversion for easy integration with PLCs, sensors, and IoT platforms.

▲Dual Serial Ports: Independent RS232/RS485 interfaces enable parallel communication with multiple industrial devices.

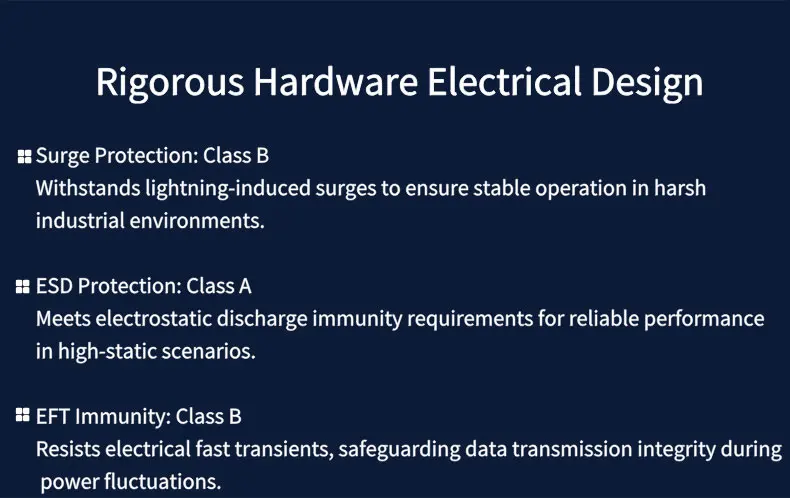

▲Industrial-Grade Reliability: -40~85℃operating temperature, surge/ESD protection (Class B/Class A), and 5-36V wide voltage power supply.

✅ Technical Highlights：

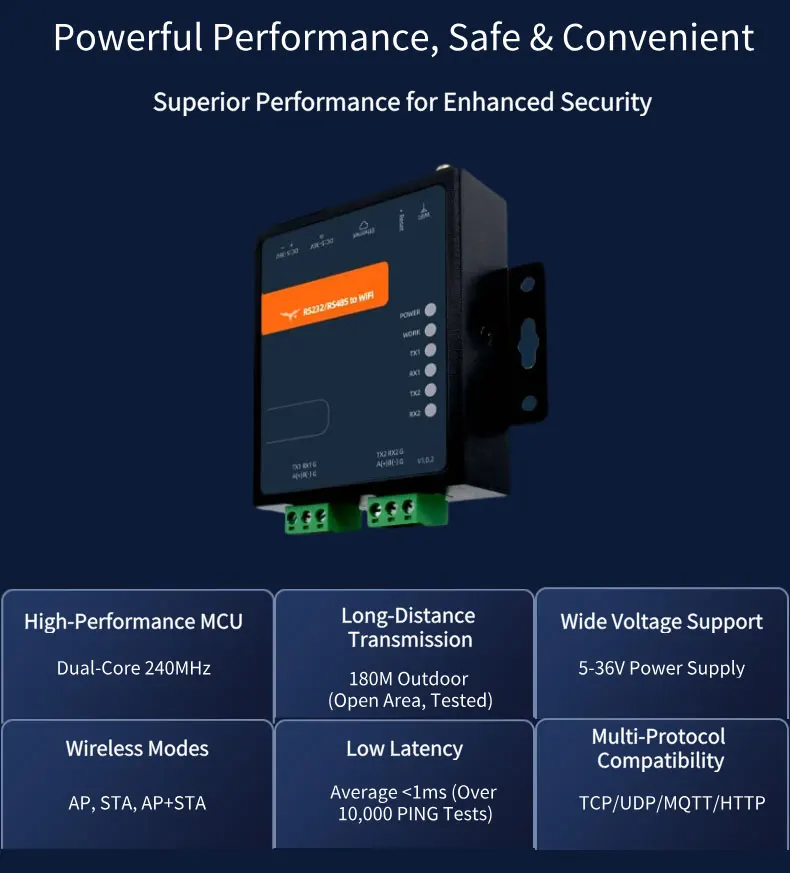

▲Wireless Specs: 20.5dBm transmit power, WPA3 encryption, AP/STA/AP+STA dual modes for flexible networking.

▲Serial Parameters: 2400-460800bps baud rate, 7/8 data bits, 1/2 stop bits, NONE/ODD/EVEN parity.

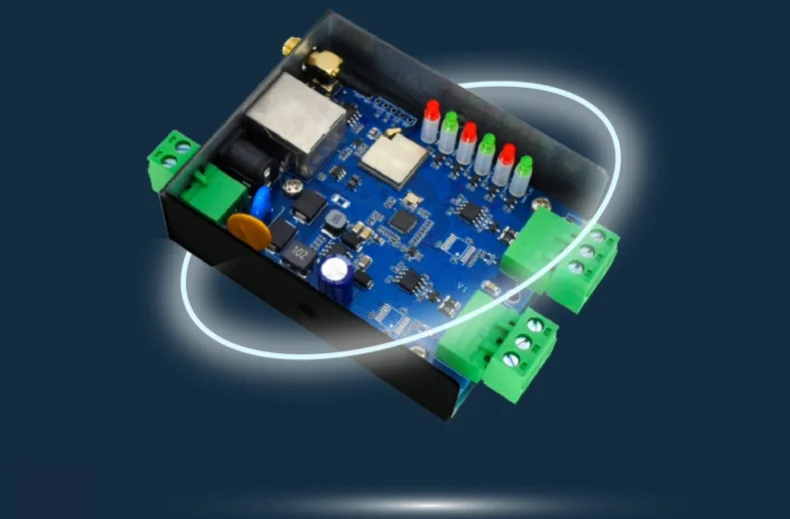

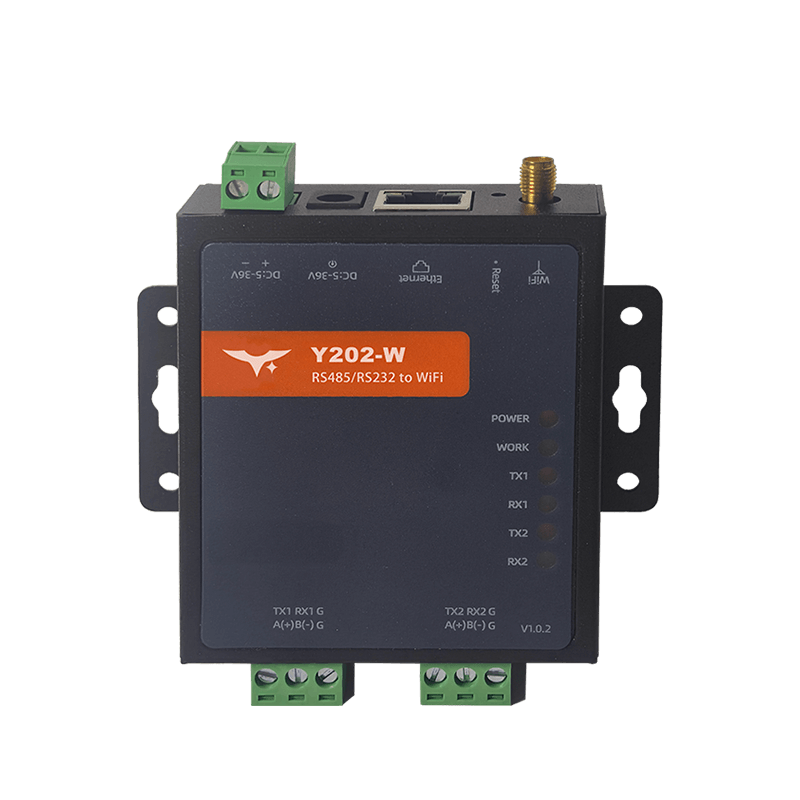

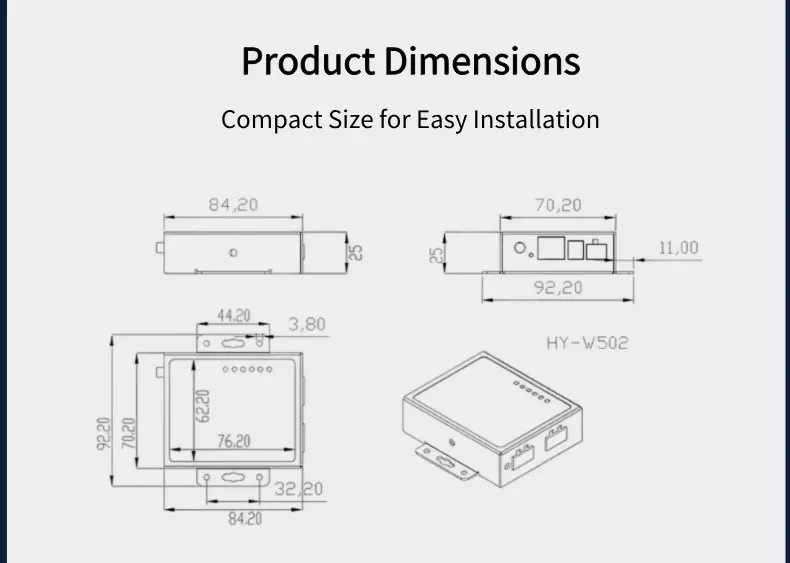

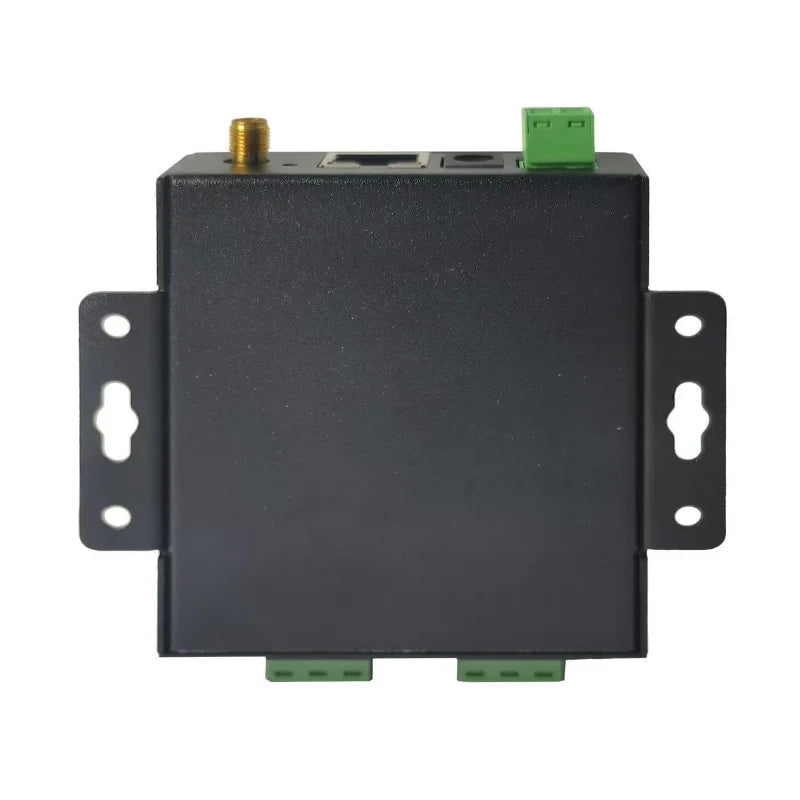

▲Hardware: 240MHz dual-core MCU, 10/100M Ethernet port, compact design (84×70×25mm) with wall-mounting holes.

✅ Key Features：

▲Multi-Protocol Support: TCP/UDP/MQTT/HTTP with 4-channel Socket communication.

▲Web Configuration: Built-in web server for easy parameter setup and firmware upgrades.

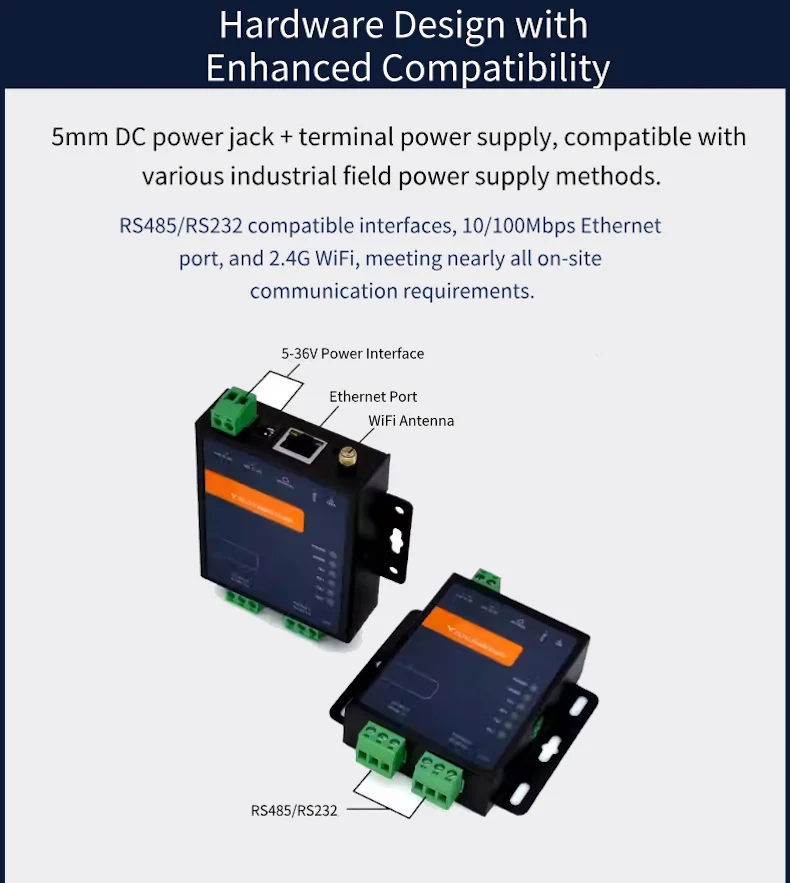

▲Dual Power Options: 5mm DC jack + terminal block for versatile installation.

✅ Application Scenarios：

▲Industrial Automation (PLCs, inverters, smart meters)

▲IoT Data Acquisition & Remote Monitoring

▲Energy/Power Substation Management

▲Smart Agriculture (Greenhouse Sensor Networks)

▲Harsh Environment Deployment (Factories, Outdoor Facilities)
