SPECIFICATIONS

Baud Rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200

Brand Name: NoEnName_Null

Condition: New

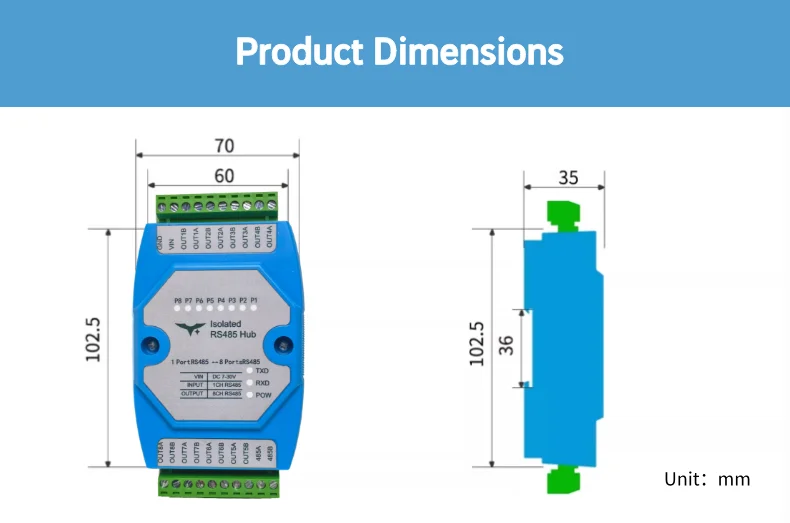

Dimensions: 100*70*35mm

High-concerned chemical: None

Operating Temperature: -40℃-85℃

Origin: Mainland China

Rated Power Supply: DC 7-30V

Supply Voltage: DC 7-30V

Type: buck (stepdown) regulator

Quality & Safety Commitment

✅ Issues with use? Contact us first

✅ Platform message for direct support

✅ One-on-one technical guidance

✅ Remote assistance for quick resolution

Thank you for your understanding & support!

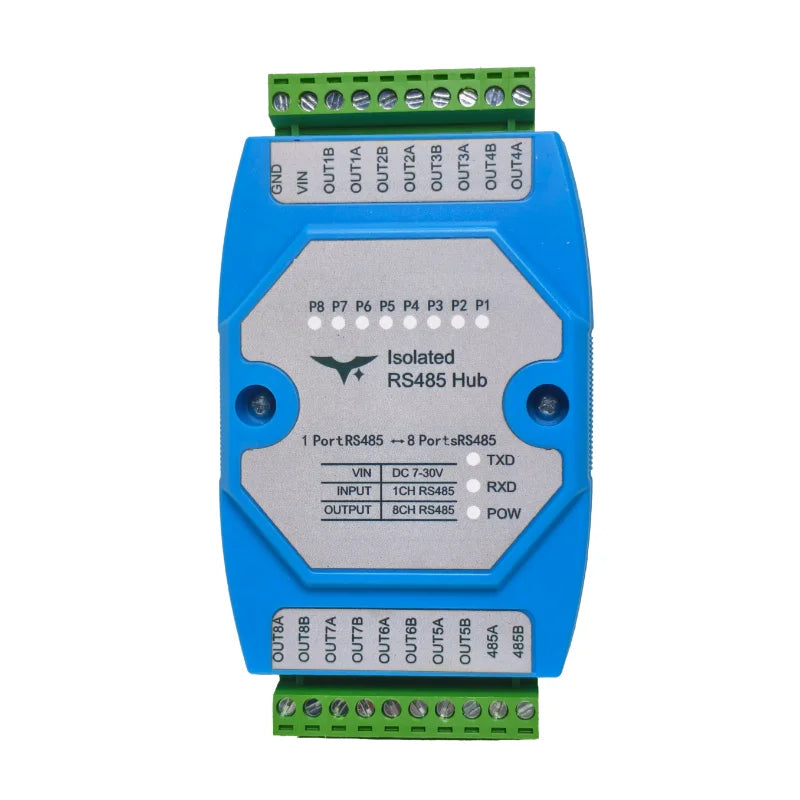

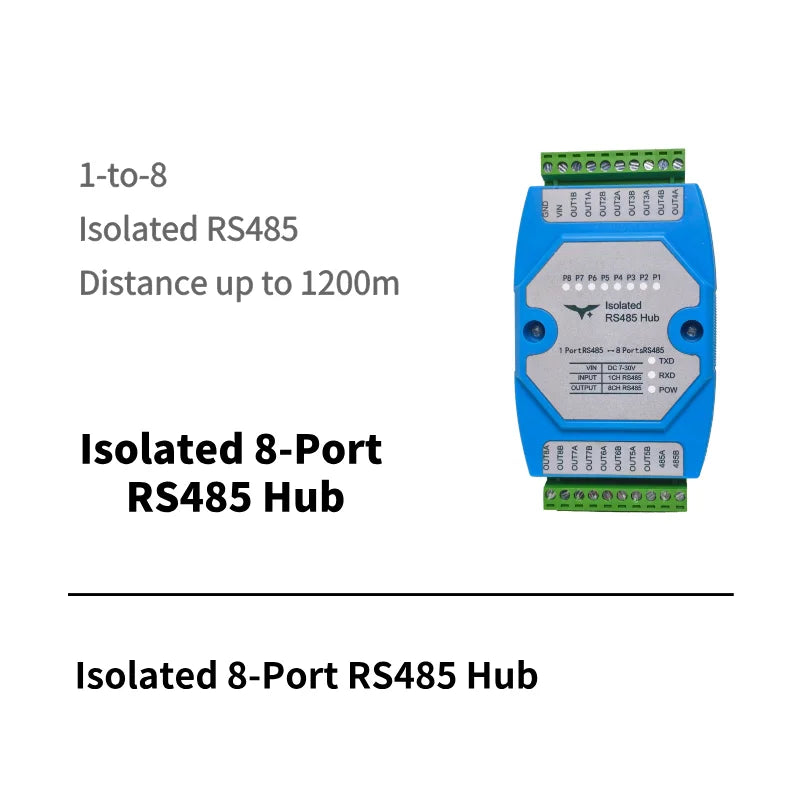

Core Features of Industrial-Grade RS485 Isolated Hub (Industrial IoT Hub)

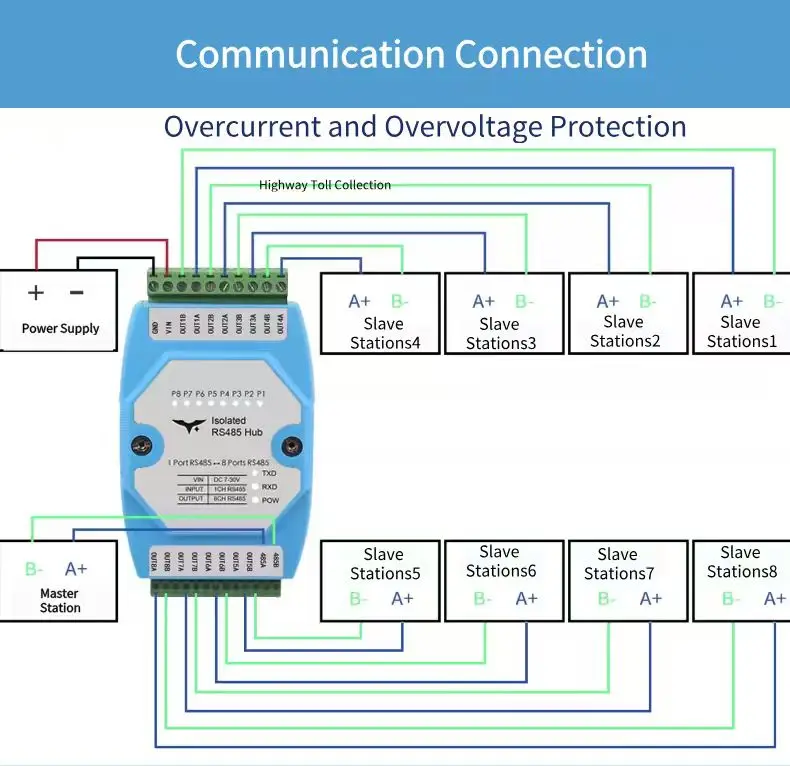

1. 1-In-8-Out Multi-Channel Expansion for Flexible Networking

Supports bidirectional transparent data transmission, enabling connection of multiple sensors/actuators (e.g., electricity meters, flow meters) to build distributed Industrial IoT monitoring networks with ease.

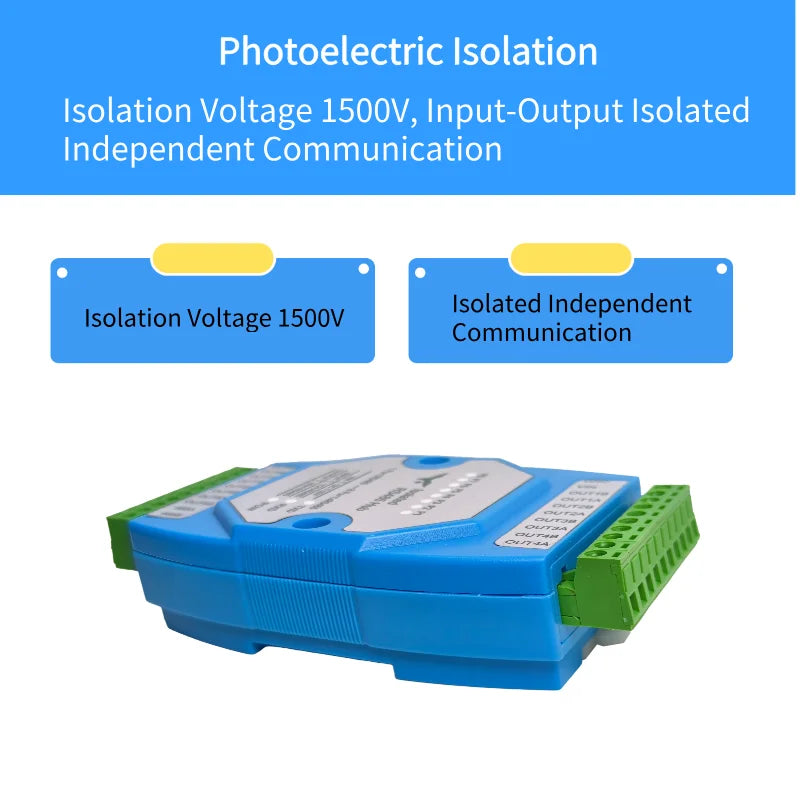

2. 1500V Photoelectric Isolation & Robust Protection

Input-output independent isolation (1500V isolation voltage) with built-in overcurrent, overvoltage, and reverse polarity protection. 1500V surge protection ensures stable Modbus RTU communication in harsh industrial environments.

3. Extended 1200M Communication Distance

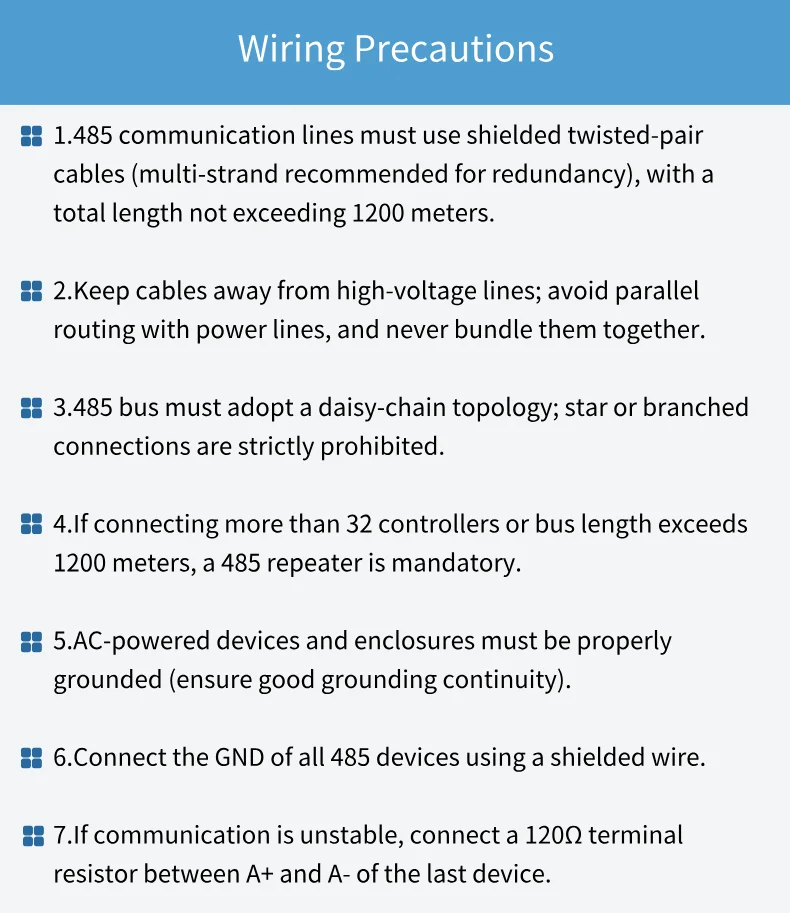

RS485 bus supports up to 1200 meters of data transmission. For networks exceeding 32 devices or 1200 meters, a 485 repeater is recommended, ideal for large-scale factory and smart building deployments.

4. Industrial-Grade Wide Temp & Voltage Design

DC7-30V wide voltage supply (compatible with 9V/12V/24V power sources) and operating temperature of -40~85℃ (0-95% RH, non-condensing), ensuring reliability in extreme working conditions.

5. Plug-and-Play for Seamless IoT Integration

Compatible with Modbus RTU protocol, enabling direct integration with SCADA systems, IoT Gateways, and cloud platforms. Accelerates Edge Computing data acquisition without complex configuration.
