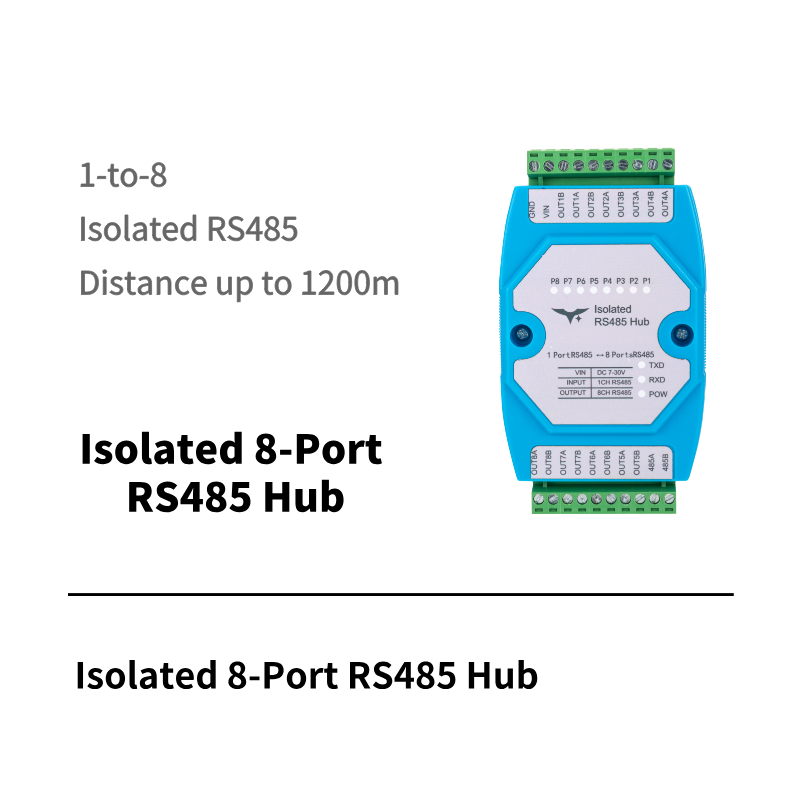

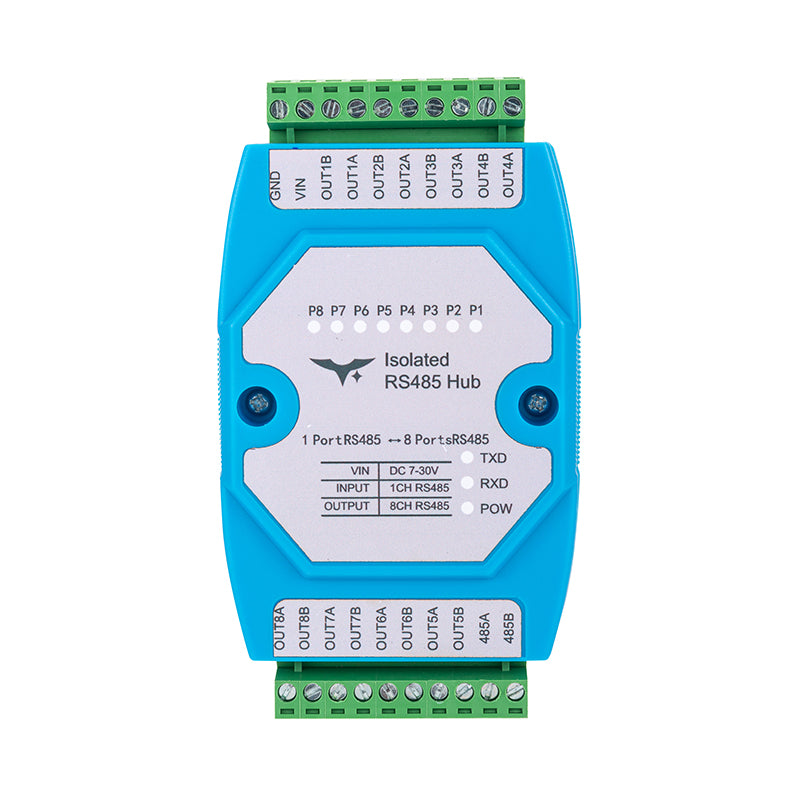

Isolated 8-Port RS485 Hub
1-to-8 Expansion | 1500V Isolation | Industrial-Grade Reliable Extension
Get Quote Now | Free Technical Solution Consultation
Common Pain Points in RS485 Bus Applications
In large-scale RS485 deployments for industrial sites, buildings, security, and energy collection, users frequently face these issues: excessive device load overwhelming the bus, limited communication distance, frequent signal interference, complex and error-prone wiring, poor stability in harsh environments, difficult expansion, and high maintenance costs.
Solution
1.1-to-8 Multi-Channel Expansion: One master connects up to 8 slaves with bidirectional transparent transmission, enabling fast construction of distributed networks.
2.1500V Photoelectric Isolation + Multiple Protections: Complete input-output isolation (1500V), built-in overcurrent, overvoltage, reverse polarity, and 1500V surge protection for superior anti-interference performance.
3.Up to 1200m Stable Communication: Standard RS485 bus distance supports large-scale deployments (add a repeater when exceeding 32 devices or 1200m).
4.Industrial-Grade Wide Temperature & Voltage Design: DC 7–30V wide voltage input, -40°C to +85°C full-range operation, reliable in extreme conditions.
5.Plug-and-Play, Zero Configuration: Fully compatible with Modbus RTU protocol, seamless integration with SCADA systems, IoT gateways, and cloud platforms for rapid deployment.
Technical Specifications
| Parameter | Details |
|---|---|
| Communication Protocol | RS485 (Modbus RTU compatible) |
| Port Configuration | 1 uplink + 8 downlink (isolated) |
| Baud Rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| Isolation Voltage | 1500V (input-output independent isolation) |
| Communication Distance | Up to 1200 meters (standard bus) |
| Power Supply | DC 7–30V |
| Operating Temperature | -40°C ~ +85°C (0–95% RH, non-condensing) |
| Dimensions | Approx. 102.5 × 70 × 35 mm |
| Mounting | 35mm DIN rail or wall mount |
| Protection Features | Overcurrent, overvoltage, reverse polarity, surge protection |
Application Scenarios
Widely used in industrial automation production line data acquisition, remote power/energy metering, security surveillance and access control, building intercom systems, highway toll collection, parking management, smart factory and warehouse multi-sensor networks, and any scenario requiring large-scale, long-distance, stable RS485 bus expansion in industrial IoT applications.
