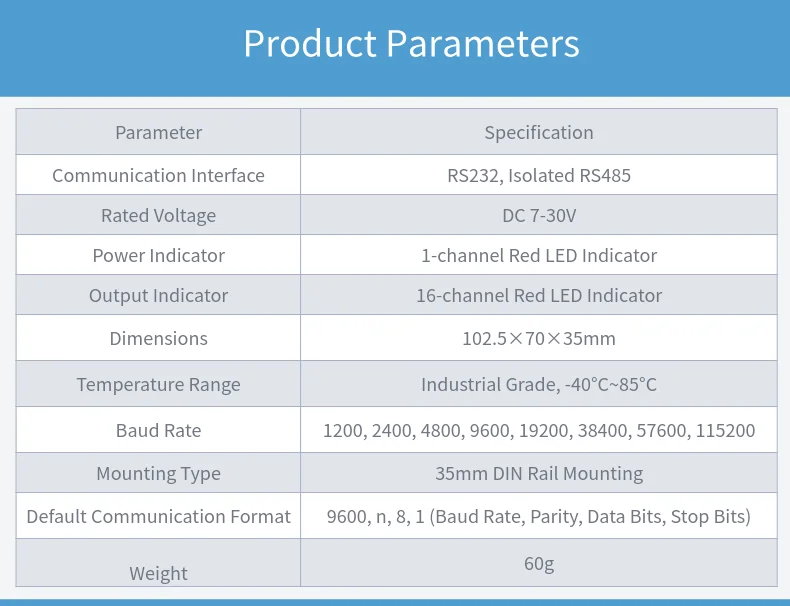

SPECIFICATIONS
Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Communication Interface: RS232, Isolated RS485
Condition: New

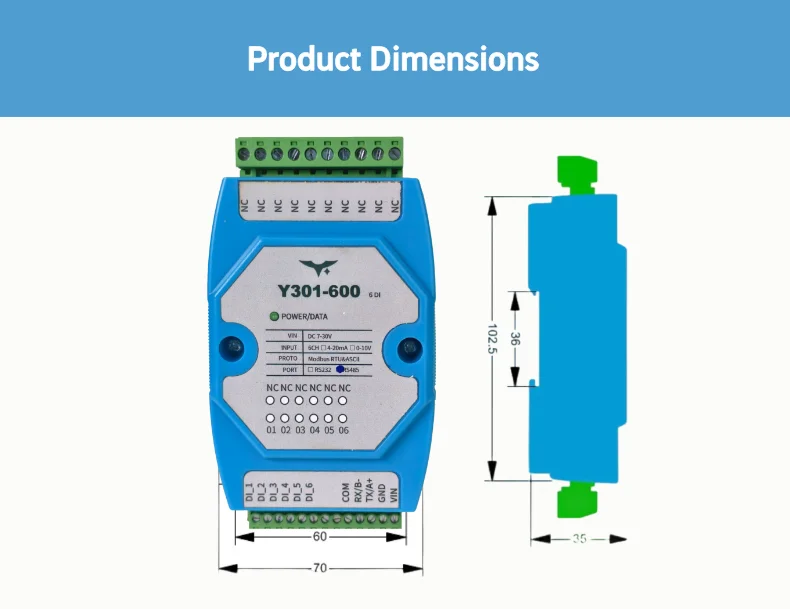

Dimensions: 102.5*70*35mm
High-concerned chemical: None
Operating Temperature: -40℃~85℃
Origin: Mainland China
Supply Voltage: DC 7-30V
Temperature Range: Industrial Grade, -40°C~85°C

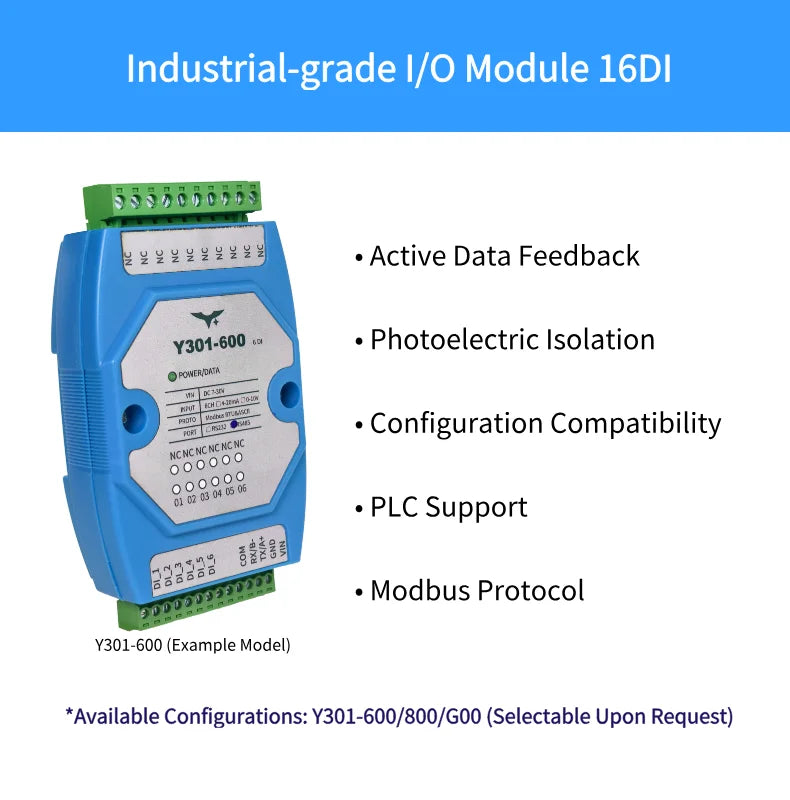

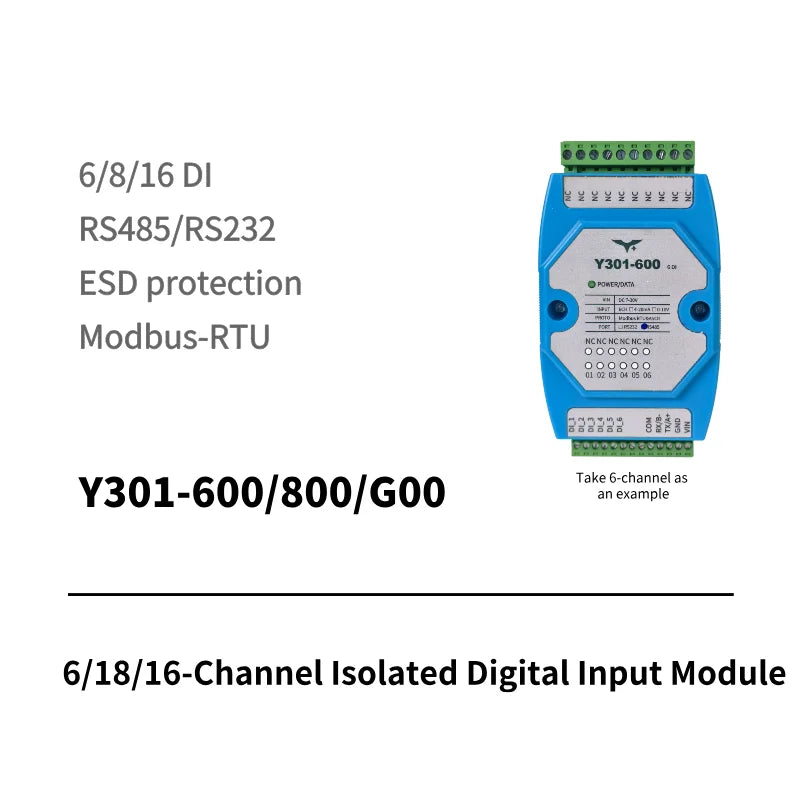

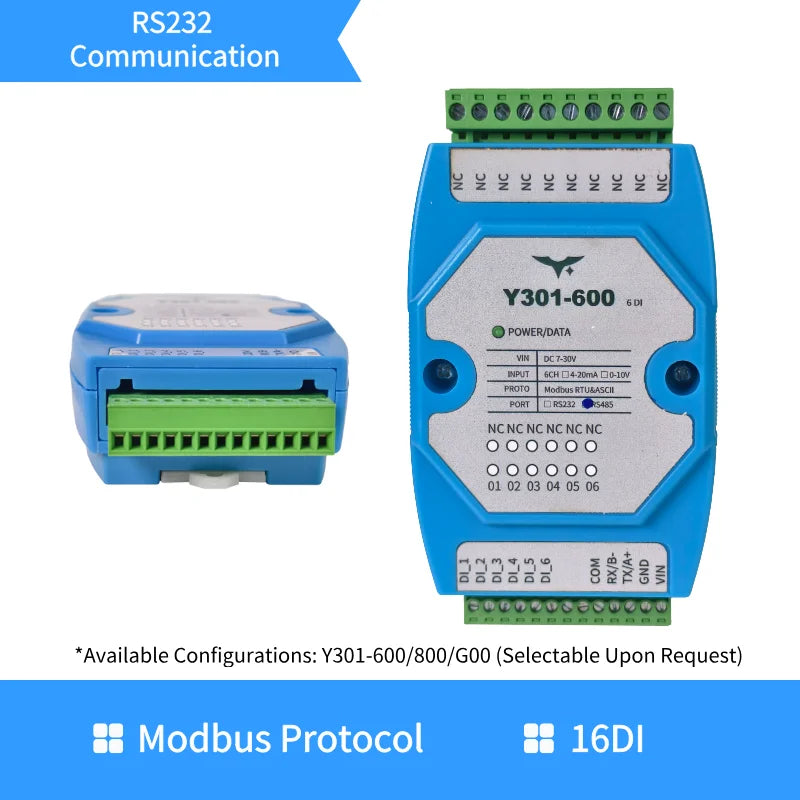

Core Features of Y301-600/800/G00
1. Industrial-Grade IoT Data Acquisition

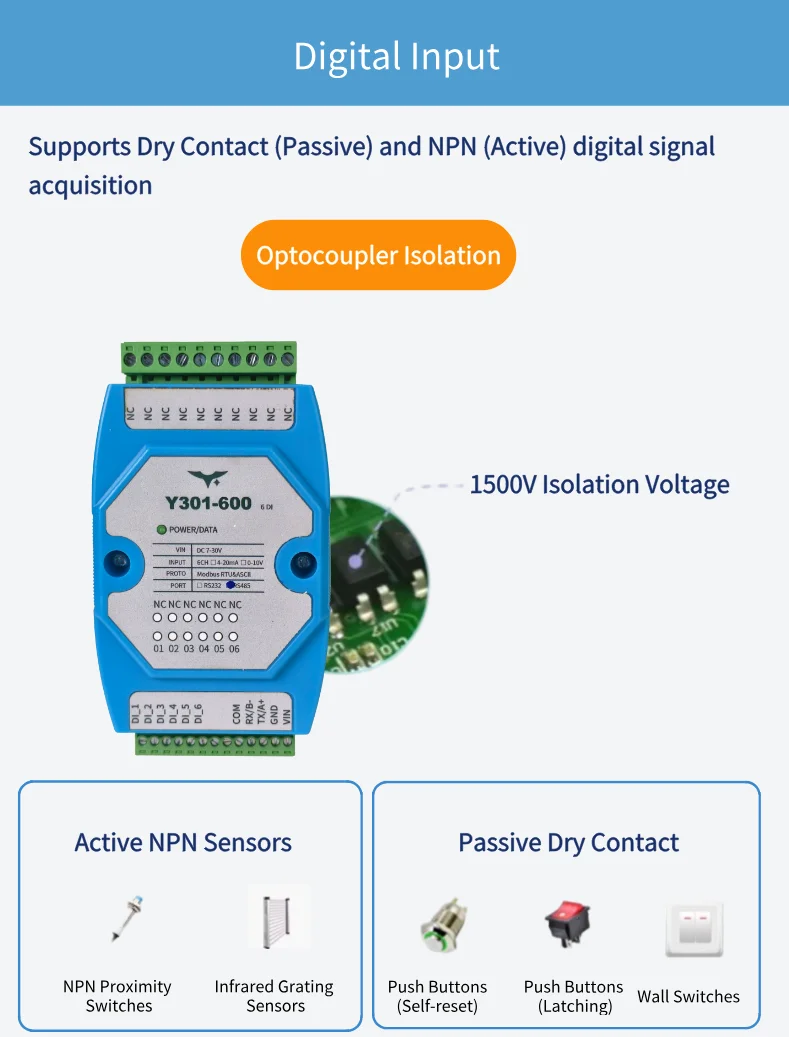

▲16 Digital Inputs (16DI)：Supports dry contact (passive) and NPN-type (active) digital signals, compatible with proximity switches, infrared sensors, buttons, etc., meeting IoT terminal data collection needs.

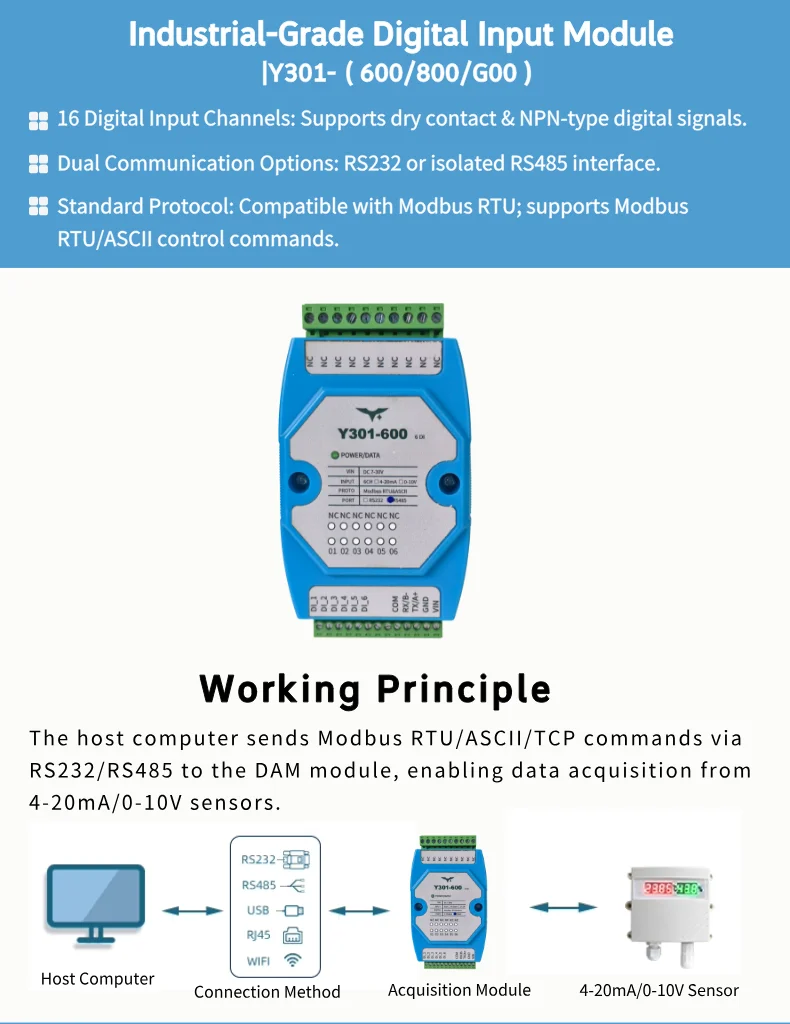

▲Modbus Protocol Compatibility：Supports Modbus RTU/ASCII commands, enabling seamless integration with PLCs, configuration software, and IoT gateways for remote monitoring and control.

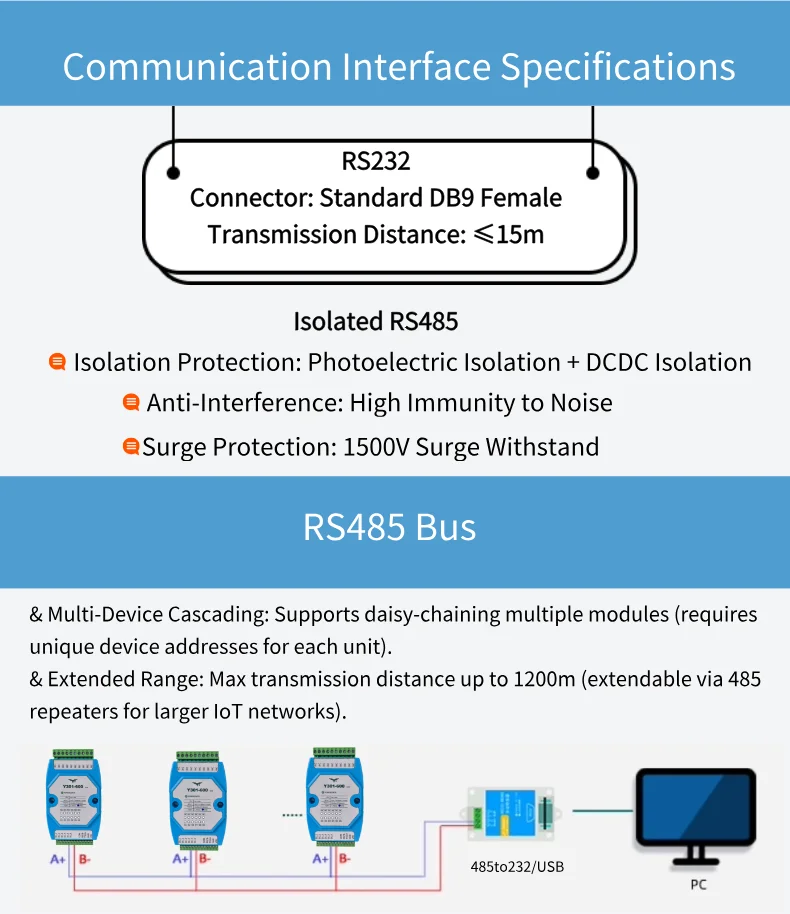

2. High-Reliability Communication & Expansion
▲Dual Communication Interfaces：RS232 (transmission ≤15m) and isolated RS485 (photoelectric isolation + DC-DC isolation, 1500V surge protection), offering strong anti-interference capability for complex industrial environments.
▲RS485 Bus Cascading：Supports multi-module Daisy-Chain networking (requires unique address setting) with a maximum transmission distance of 1200m; expand IoT network scale via repeaters.
3. Industrial-Grade Stability Design
▲Wide Voltage Power Supply & Protection：DC 7-30V power input with overcurrent, overvoltage, and reverse polarity protection, adapting to unstable power environments.

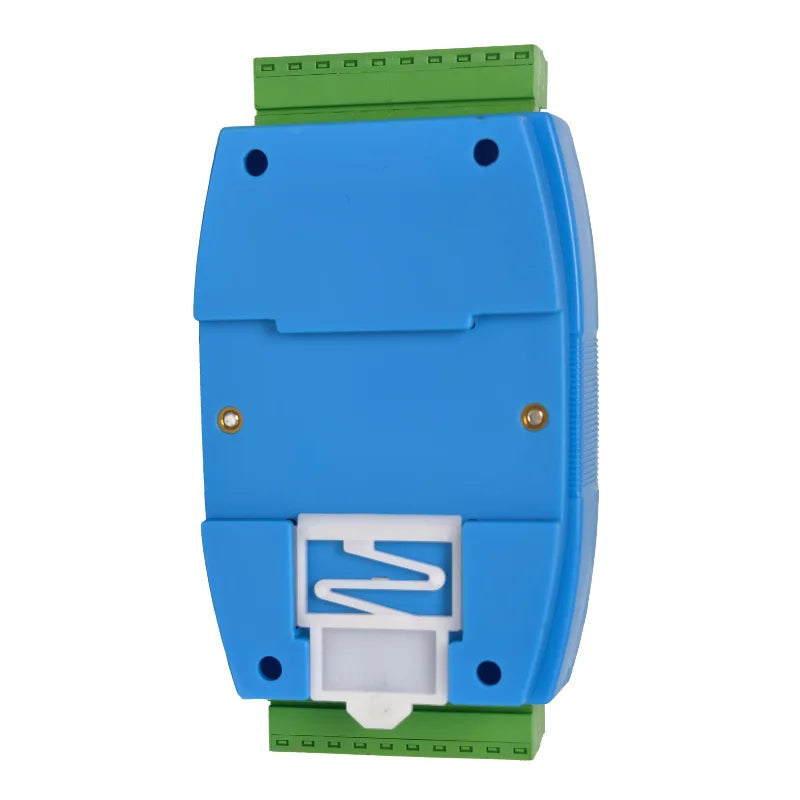

▲Extreme Environment Adaptability：-40℃~85℃ operating temperature, 35mm DIN rail mounting, suitable for harsh scenarios like industrial automation and smart buildings.
4. Safety & Compatibility
▲Photoelectric Isolation：1500V isolation voltage effectively blocks external interference, protecting host and sensors.
▲PLC & Configuration Compatibility：Supports mainstream industrial control platforms for quick integration into existing automation systems.
