SPECIFICATIONS

Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

Condition: New

Dimensions: 100mm70mm35mm

High-concerned chemical: None

Operating Temperature: -40~85℃

Origin: Mainland China

Supply Voltage: 12-30VDC

Type: buck (stepdown) regulator

Weight: 170g

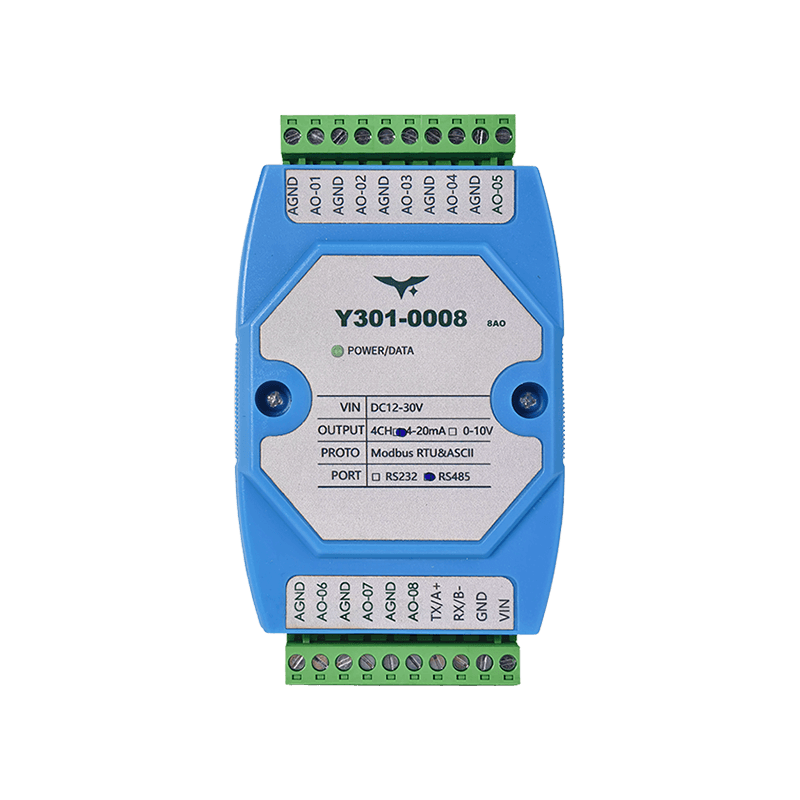

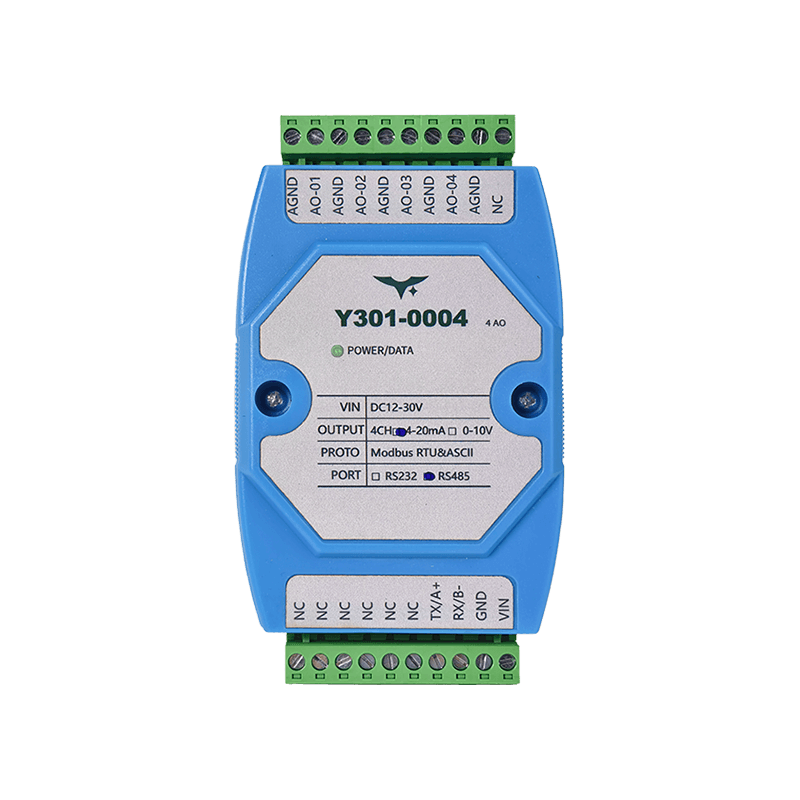

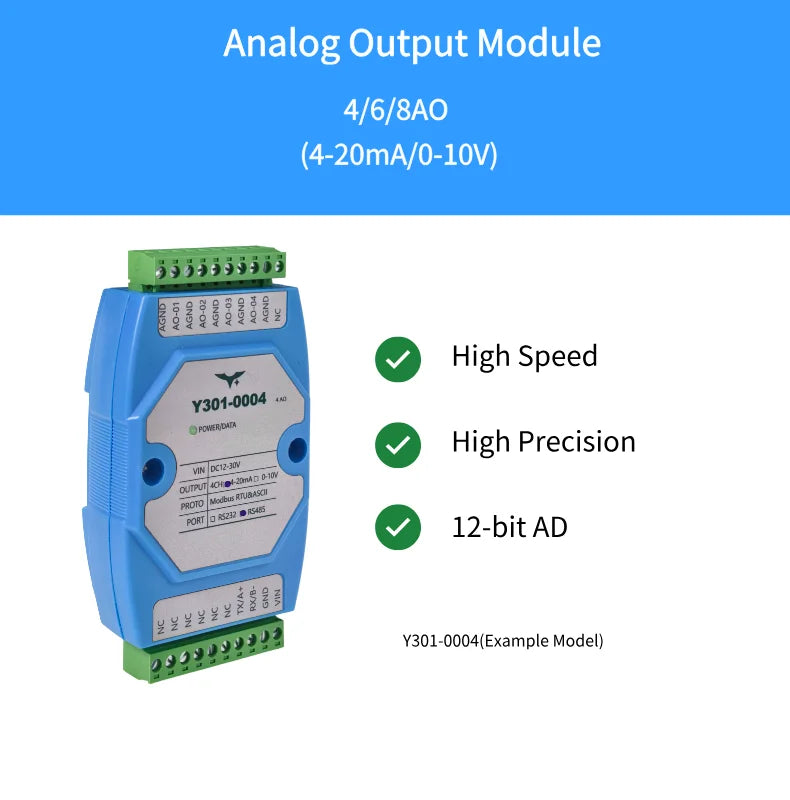

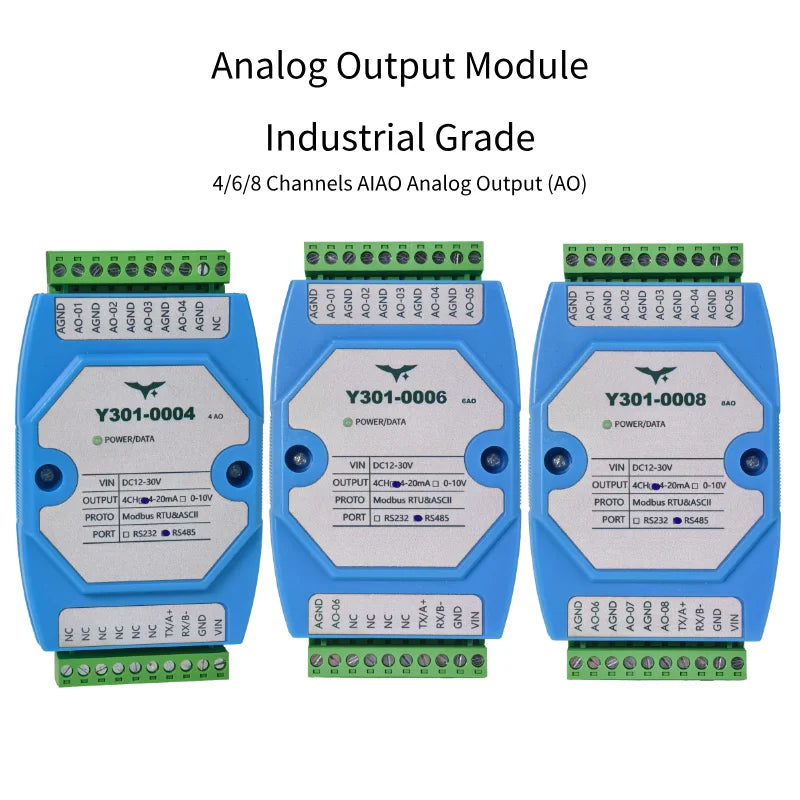

Core Features of Y301-0004/0006/0008 Analog Output Module

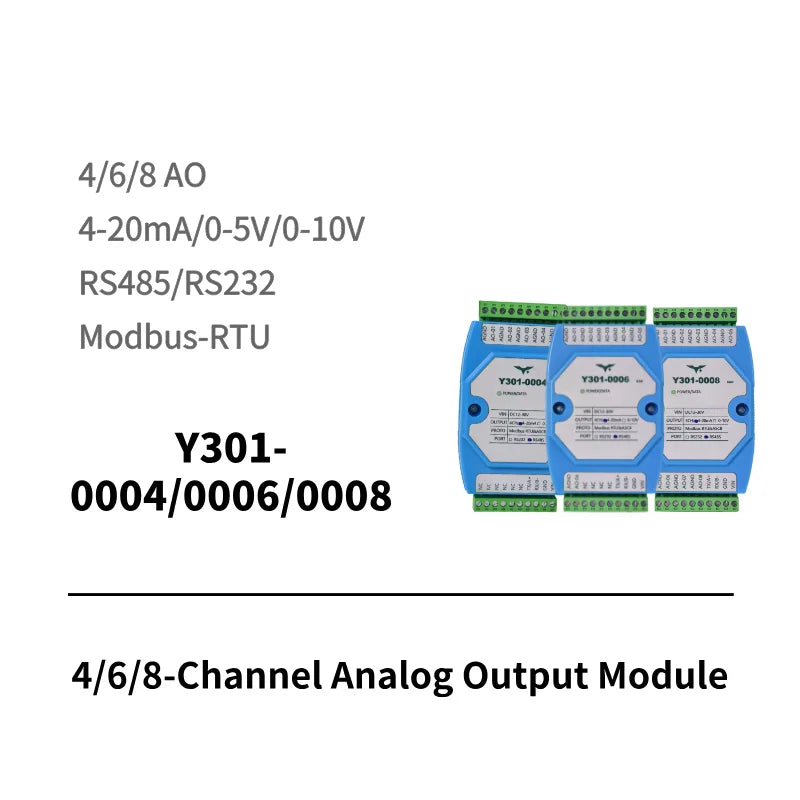

▲1. Flexible Multi-Channel Configuration

Available in 4/6/8-channel AO (Analog Output) options, supporting standard 4-20mA/0-10V signal output. Ideal for IoT device networking of various scales, compatible with industrial sensors and actuators.

▲2. High Precision & Resolution

12-bit DA conversion with accuracy up to ±0.03%FS (at 25℃) and resolution of 0.001mA/0.001V, ensuring reliable data acquisition and precise control for critical industrial automation scenarios.

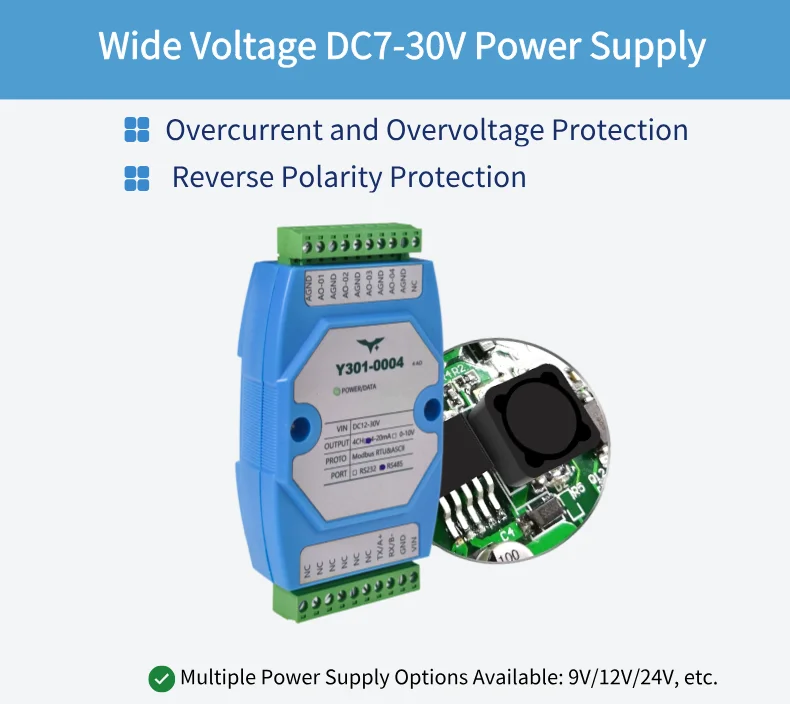

▲3. Wide Voltage Supply & Robust Protection

DC12-30V wide voltage input (supports 9V/12V/24V power sources). Built-in overcurrent, overvoltage, and reverse polarity protection, plus 1500V surge protection, enhancing durability in harsh industrial environments.

▲4. Industrial-Grade Reliability

Operates in -40~85℃ wide temperature range (0-95% RH, non-condensing). Features photoelectric isolation and DCDC isolation for strong anti-interference capability, with RS485 communication distance up to 1200 meters.

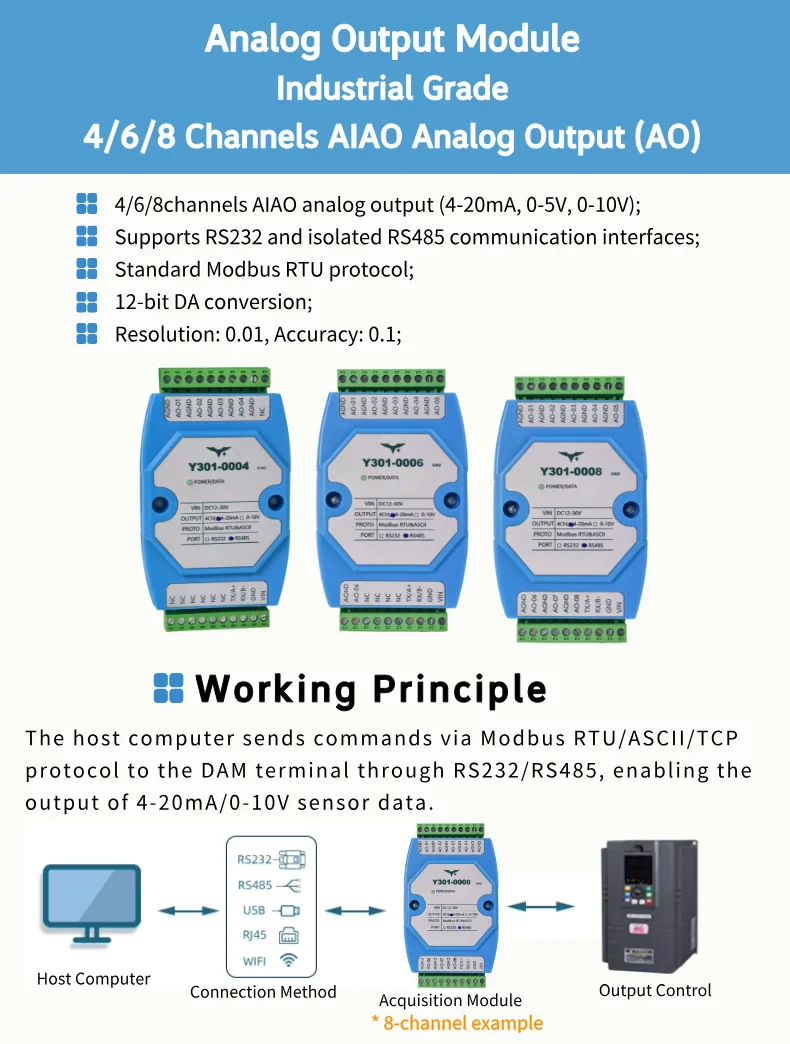

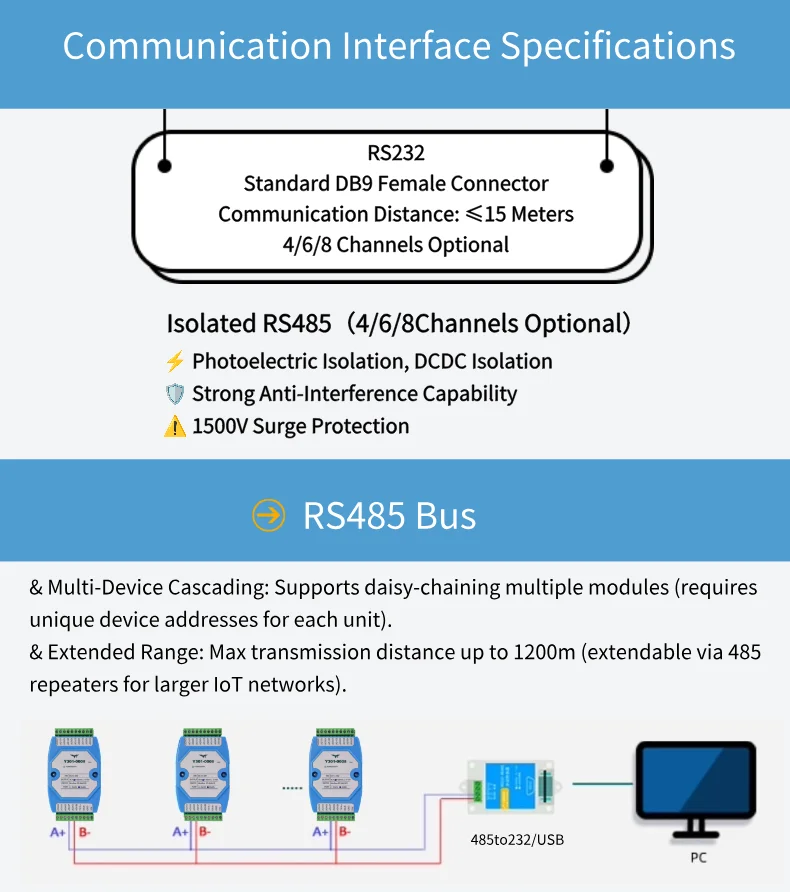

▲5. Versatile Communication & Networking

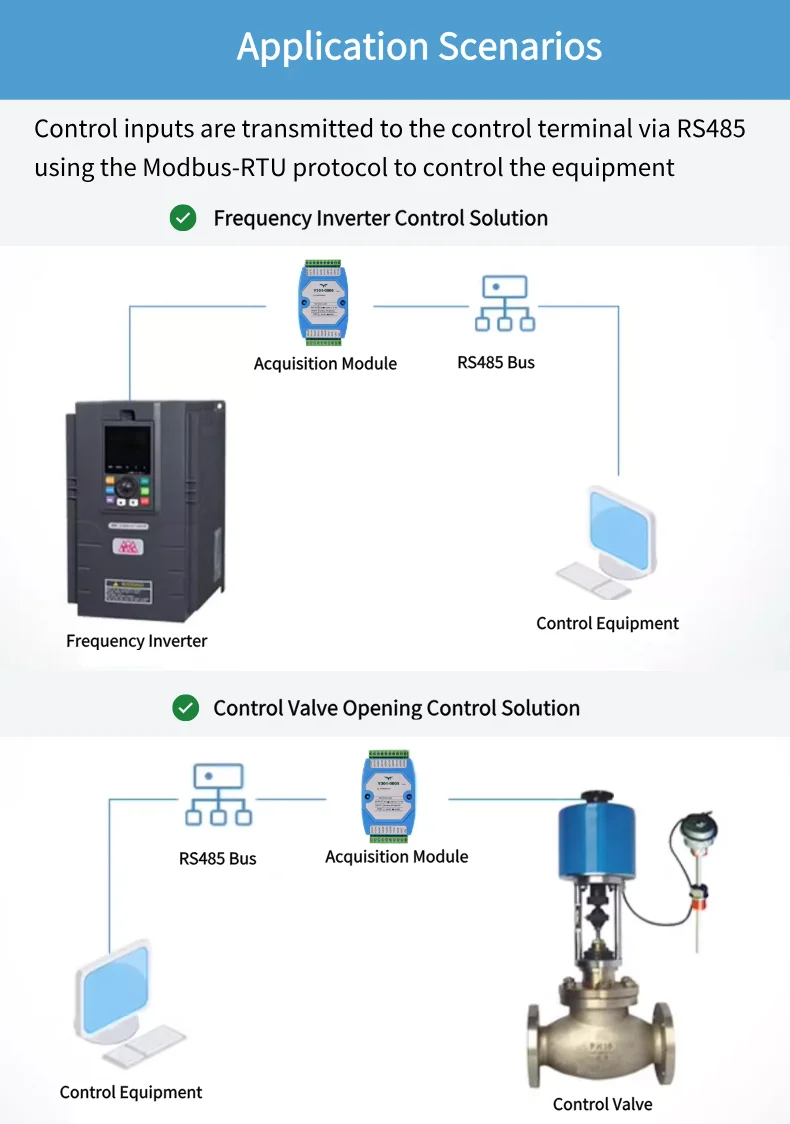

Supports RS485/RS232 interfaces (optional) and Modbus-RTU protocol, enabling seamless integration with PLCs, SCADA systems, and IoT platforms. Supports multi-device cascading via unique addresses for scalable network deployment.

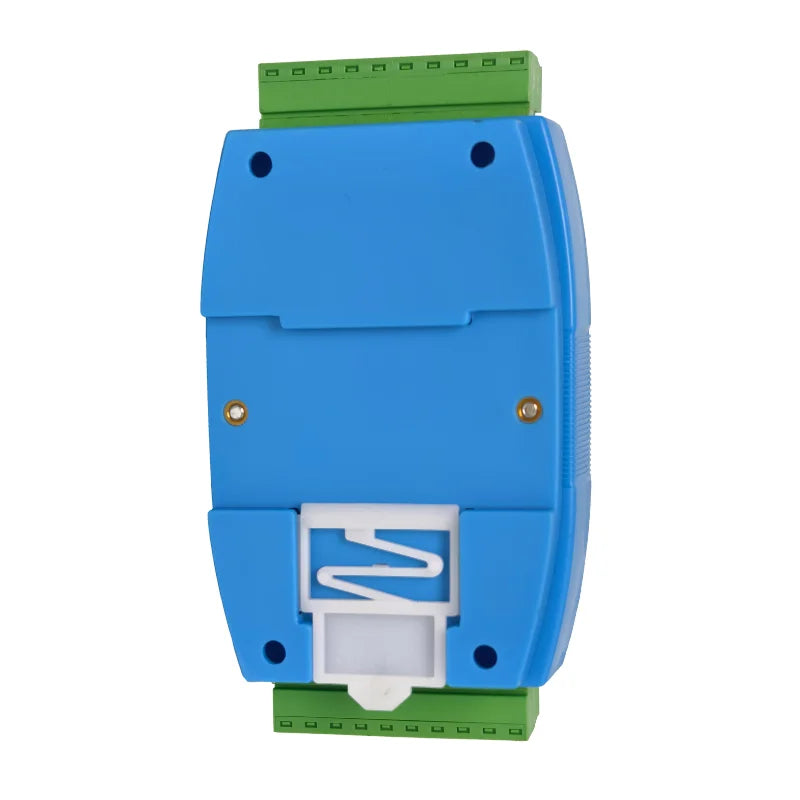

▲6. Compact & Certified Design

Ultra-compact size: 100×70×35mm (170g), suitable for embedded installation. Certified by CE, ISO9001, ensuring compliance with international quality standards for global markets.
