Click to download the product specification sheet

Common Pain Points
▲ Long-distance control requires extensive wiring → high cost & complex installation
▲ Wired systems lack flexibility → hard to add new control points
▲ Outdoor/factory environments cause signal instability & interference
▲ Multi-device linkage → slow response, complicated pairing & debugging
▲ Equipment failures from temperature extremes or voltage fluctuations

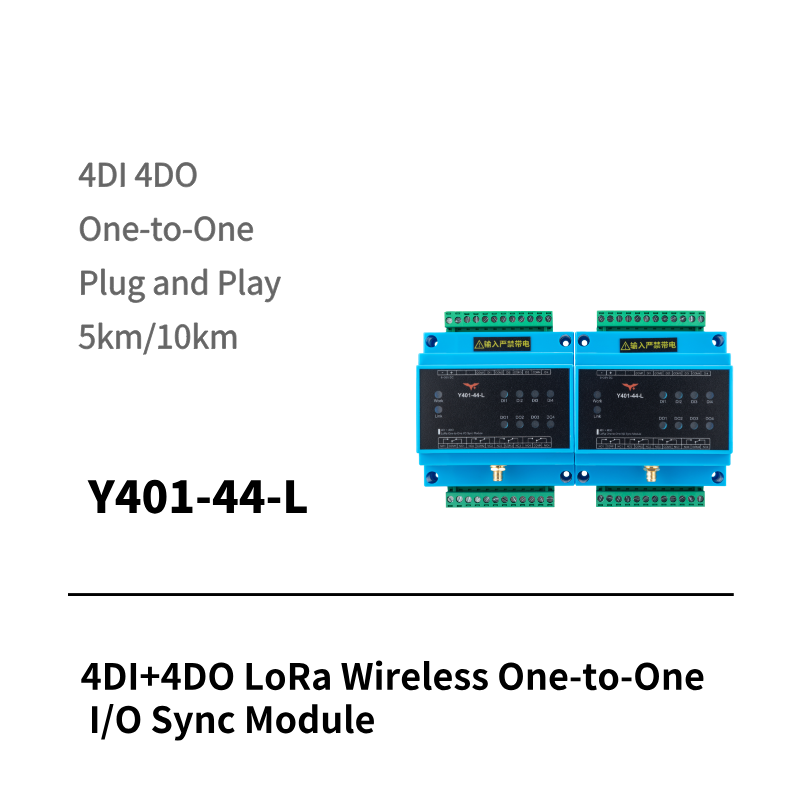

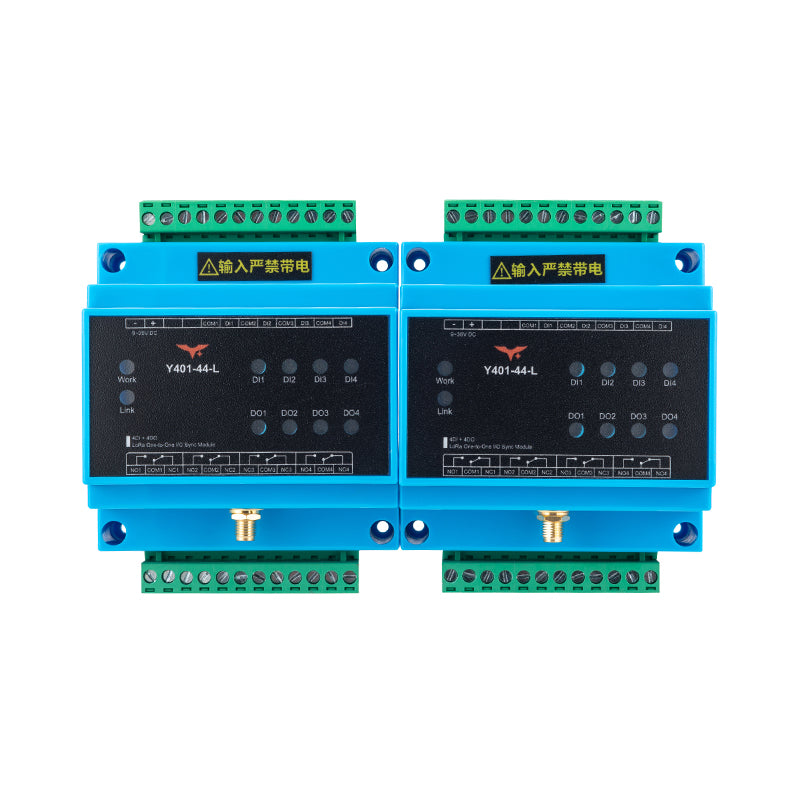

Y401-44-L Solution
√ 5000m ultra-long range – LoRa for stable transmission in open areas, completely wire-free
√ 1 master + 4 slaves – one-to-one real-time correspondence, master input instantly triggers slave output
√ Zero configuration – factory pre-paired, new slave auto-matches in ~20 seconds with clear LED indicators
√ Industrial-grade durability – DC 9-36V wide voltage, -20°C to +85°C operating temperature
√ Easy installation – 35mm DIN rail mounting + mounting ears for cabinets or walls

Interface & Control

Master: 4-channel input (dry contact trigger)
Slave: 4-channel relay output (NO/NC optional)
Load capacity: ≤1kW direct control; pair with AC contactor for higher power (e.g., 220V pumps)
Important: Do not apply voltage to input terminals

Typical Application Scenarios
✔ Remote open/close community/park barriers & gates
✔ Factory equipment remote start/stop & linkage
✔ Fire/security alarm system integration
✔ Smart street lights & advertising light box control
✔ Large warehouse/workshop multi-point wireless switching
✔ Float ball wireless control for water pumps

Technical Specifications
