SPECIFICATIONS

Condition: New

Data bits: 7, 8

High-concerned chemical: None

Network port*1: RJ45 10/100M adaptive

Operating Temperature: -40~85

Origin: Mainland China

Overall dimensions (MM): 74.6*22.6*16.0

Quantity: 500

Stop bits: 1/2

Supply Voltage: 5~36V

Supply current: 65MA@12V

Type: Module

baud rate: 2400~460800BPS

Quality & Safety Commitment

✅ Issues with use? Contact us first

✅ Platform message for direct support

✅ One-on-one technical guidance

✅ Remote assistance for quick resolution

Thank you for your understanding & support!

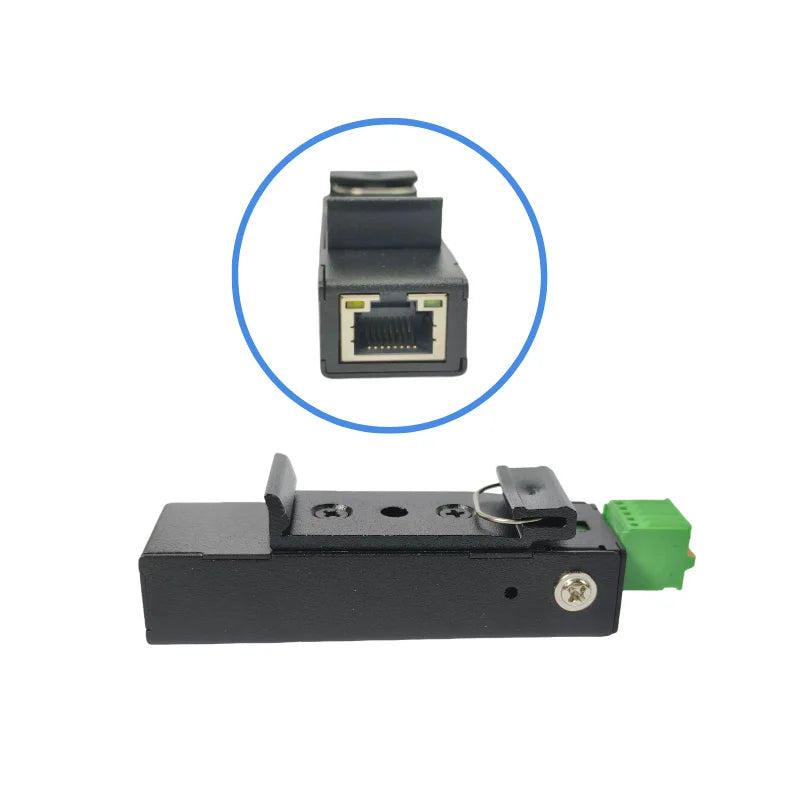

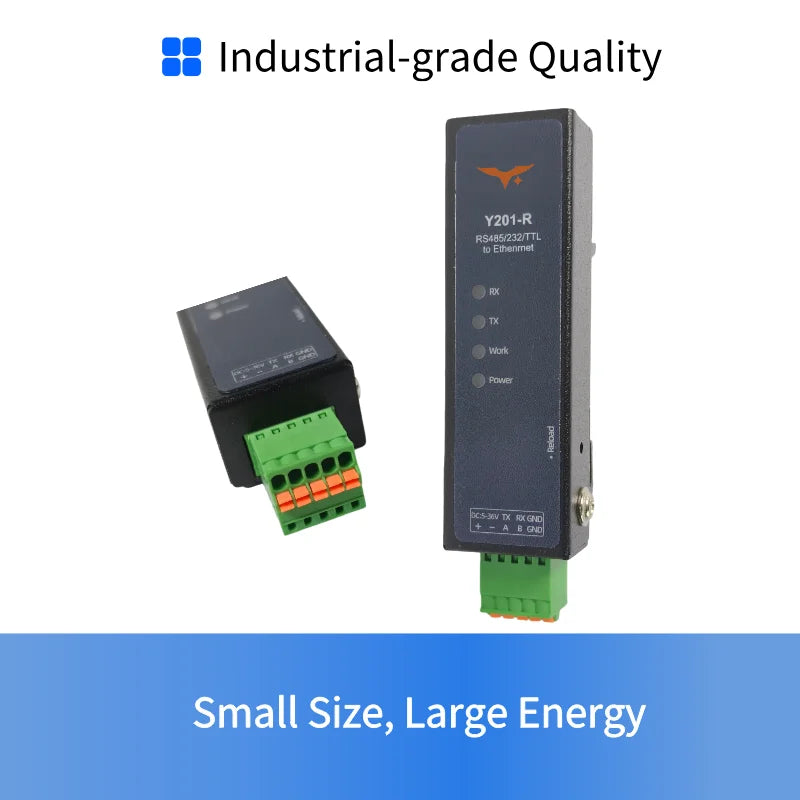

Y201-R Serial-to-Ethernet Server | The Top Choice for Cross-Border Construction Contractors

Core Values :

✅ 1. Versatile Interfaces, Full Protocol Compatibility

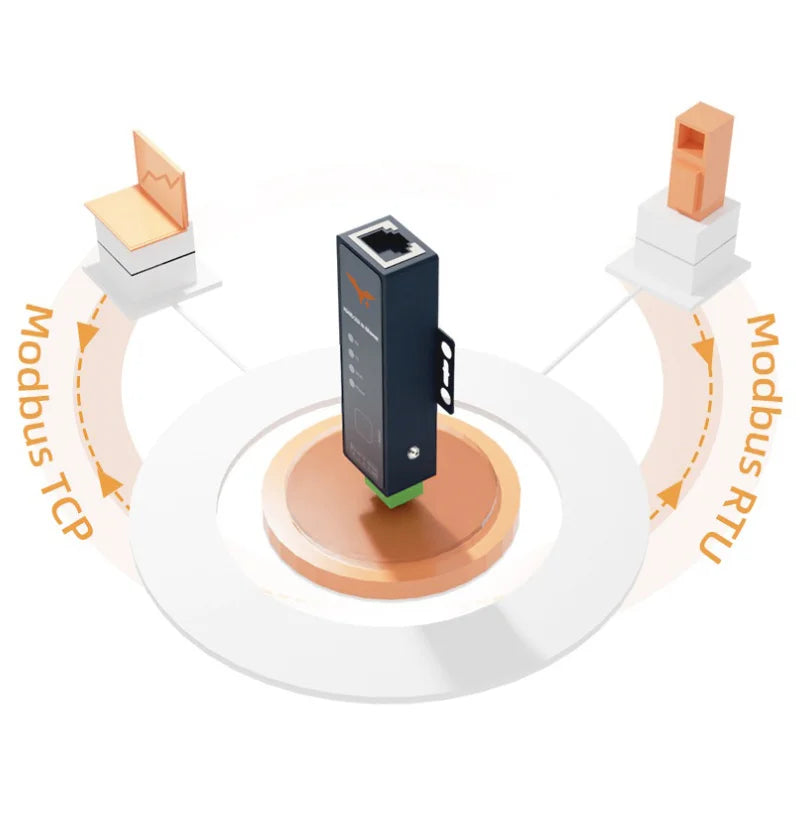

RS232/485/TTL Tri-Mode Serial Ports, Supporting Modbus TCP/RTU Bidirectional Conversion + HTTP/MQTT IoT Transmission, One Device for Industrial Equipment + Cloud Platforms

✅ 2. Industrial-Grade Reliability, Global Compatibility

-40°C~85°C Wide Operating Temperature Range (IP30 Protection), 5-36V Wide Voltage Input (65mA@12V Low Power Consumption), ESD/EFT Protection.

✅ 3. Plug-and-Play, Zero Maintenance

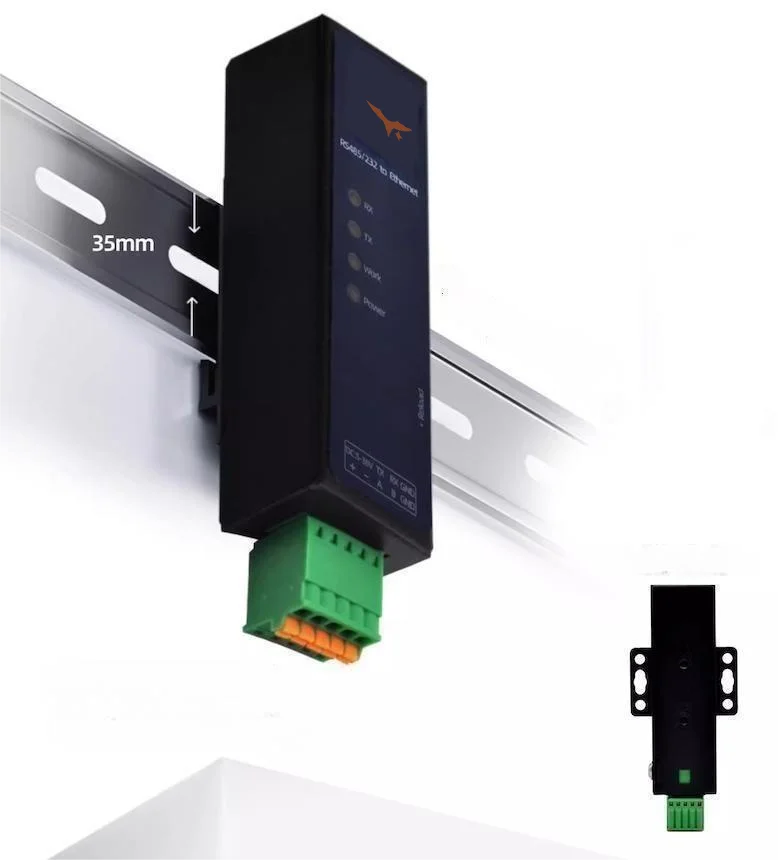

A compact 74.6×22.6×16mm chassis (DIN rail mountable), automatic restart with hardware and software watchdog timers, and a virtual serial port driver compatible with Windows and Linux, instantly transforming traditional devices into intelligent networked terminals.

►Applications: Industrial Automation/Intelligent Transportation/Smart Agriculture
